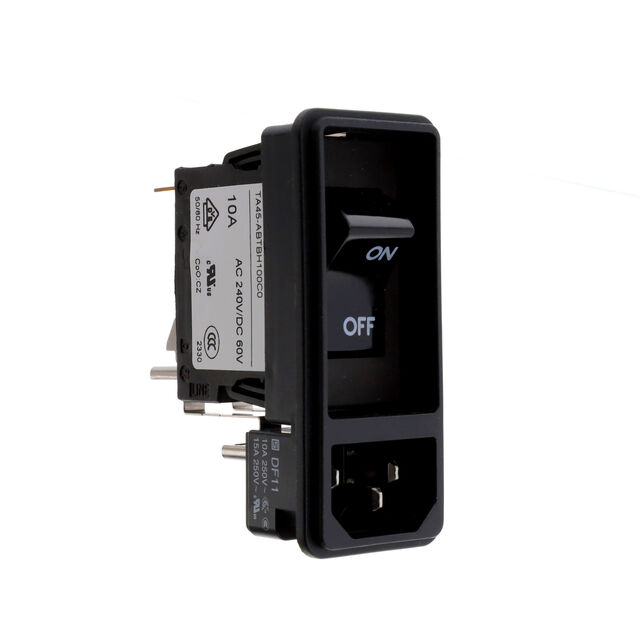

DF11.1477 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Material Flammability Rating | Voltage Rating - Appliance Inlet | Filter Type | Accomodates a Fuse | Current Rating - Circuit Breaker | Ingress Protection | Connector Style | Approval Agency | Current Rating - Appliance Inlet | Connector Type | Switch Features | Termination | Termination | Termination | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 29 mm | 73.5 mm | Flange Panel Mount | UL94 V-0 | 250 VAC | Unfiltered - Commercial | 10 A | IP40 | IEC 320-C14 | cULus ENEC | 10 A | Receptacle Male Blades - Module | Circuit Breaker Switch On-Off | 6.3 mm | Quick Connect | 0.25 " | |||
 SCHURTER Inc. | 29 mm | 73.5 mm | Panel Mount Snap-In | UL94 V-0 | 250 VAC | Unfiltered - Commercial | 10 A | IP40 | IEC 320-C14 | cULus ENEC | 10 A | Receptacle Male Blades - Module | Circuit Breaker Switch On-Off | 6.3 mm | Quick Connect | 0.25 " | 0.079 in | 2 mm | |
SCHURTER Inc. | 29 mm | 73.5 mm | Panel Mount Snap-In | UL94 V-0 | 250 VAC | Unfiltered - Commercial | 10 A | IP40 | IEC 320-C14 | cULus ENEC | 10 A | Receptacle Male Blades - Module | Circuit Breaker Switch On-Off | 6.3 mm | Quick Connect | 0.25 " | 0.059 in | 1.5 mm |
