Disc Thermistor Series

Catalog

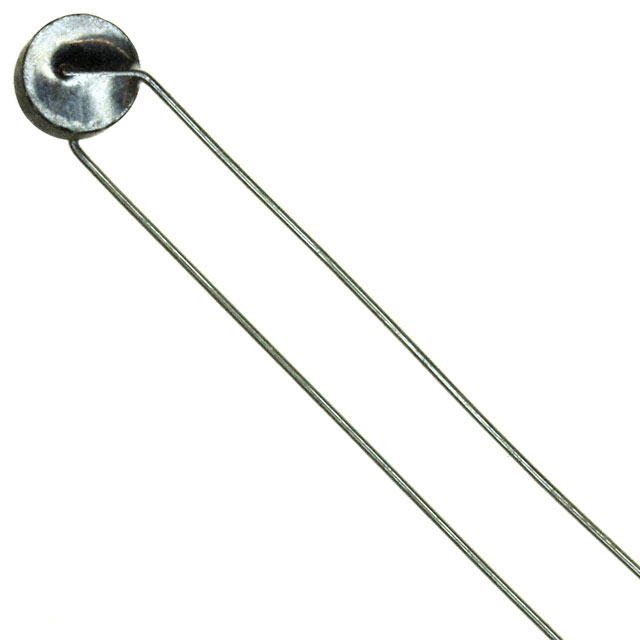

NTC THERMISTORS 1KOHM 10% 3530 BETA UNCOATED

Part	Length - Lead Wire [x]	Length - Lead Wire [x]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	B Value Tolerance	B25/50	B25/100	Resistance Tolerance	B25/85	B25/75	B0/50	Resistance in Ohms @ 25°C	Mounting Type	Resistance in Ohms @ 25°C	Package / Case	Package / Case [y]	Package / Case [diameter]
Vishay Ametherm 2DB102K	0.98 in	25 mm	750 mW	-55 C	150 °C	3 %	3485 K	3532 K	10%	3521 K	3512 K	3445 K	1k	Through Hole
Vishay Ametherm 2DB101K	0.98 in	25 mm	750 mW	-55 C	150 °C	3 %	3485 K	3532 K	10%	3521 K	3512 K	3445 K		Through Hole	100 Ohms
Vishay Ametherm 3DB500J	0.98 in	25 mm	1 W	-55 C	150 °C	3 %	3485 K	3532 K	10%	3521 K	3512 K	3445 K		Through Hole	50 Ohms	Disc	0.6 mm	7.6 mm
Vishay Ametherm 1DA101K-EC	0.98 in	25 mm	500 mW	-55 C	150 °C	3 %	2891 K	2924 K	10%	2916 K	2910 K	2859 K		Through Hole	100 Ohms	Disc	1.5 mm	2.5 mm
Vishay Ametherm 1DA131J	0.98 in	25 mm	500 mW	-55 C	150 °C	3 %	2891 K	2924 K	10%	2916 K	2910 K	2859 K		Through Hole	130 Ohms	Disc	1.5 mm	2.5 mm
