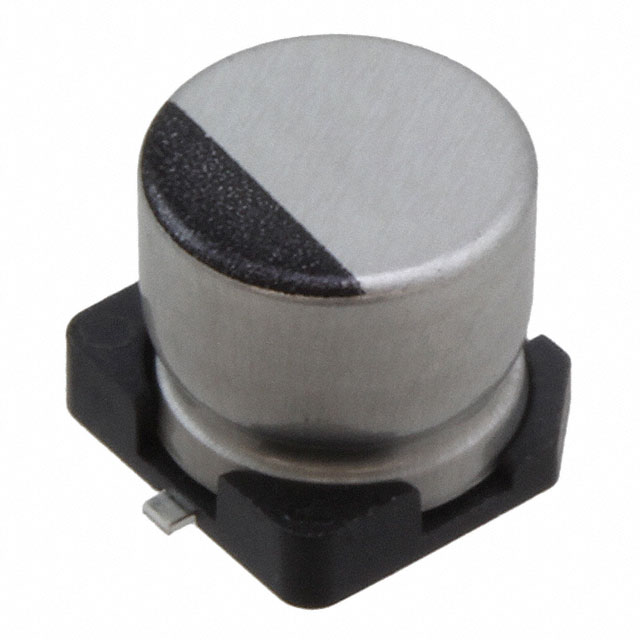

SGV Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Lifetime @ Temp.	Capacitance	Ripple Current @ High Frequency	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ratings	Polarization	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Rubycon 50SGV330M16X16.5	2000 Hrs	330 µF	564 mA	Automotive	Surface Mount	-55 C	105 ░C	Radial Can - SMD	17 mm	17 mm	0.669 in	0.669 in	20 %	0.669 "	17 mm	470 mA	0.63 in	16 mm	AEC-Q200	Polar	50 VDC
Rubycon 100SGV47M12.5X13.5	2000 Hrs	47 µF	240 mA	Automotive	Surface Mount	-40 C	105 ░C	Radial Can - SMD					20 %		14 mm	160 mA	0.492 in	12.5 mm	AEC-Q200	Polar	100 V	0.551 in
Rubycon 35SGV330M12.5X16	2000 Hrs	330 µF		Automotive	Surface Mount	-55 C	105 ░C	Radial Can - SMD					20 %	0.65 in		460 mA	0.492 in	12.5 mm	AEC-Q200	Polar	35 V		16.5 mm
Rubycon 16SGV100M6.3X8	2000 Hrs	100 µF	133.2 mA	Automotive	Surface Mount	-55 C	105 ░C	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	20 %		8 mm	111 mA	0.248 "	6.3 mm	AEC-Q200	Polar	16 V	0.315 in
Rubycon 50SGV10M6.3X6.1	2000 Hrs	10 µF		Automotive	Surface Mount	-55 C	105 ░C	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	20 %	0.24 "		35 mA	0.248 "	6.3 mm	AEC-Q200	Polar	50 VDC		6.1 mm
