ZX10E Series

Catalog

SWITCH SNAP ACT SPDT 100MA 48V

Part	Mechanical Life	Release Force	Overtravel [custom]	Overtravel [custom]	Differential Travel	Differential Travel	Voltage Rating - DC	Operating Force	Switch Function	Termination Style	Electrical Life	Mounting Type	Actuator Type	Operating Position	Operating Position	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Pretravel	Pretravel	Differential Travel
Honeywell Sensing and Productivity Solutions ZX10E50E01	1000000 Cycles	8 gf	0.025 in	0.6 mm	0.05 in	1.3 mm	48 V	55 gf	On-Mom	PC Pin	1000000 Cycles	Right Angle Through Hole	Lever Simulated Roller	11.1 mm	0.437 "	100 mA	120 °C	-40 C	SPDT	0.15 in	3.8 mm

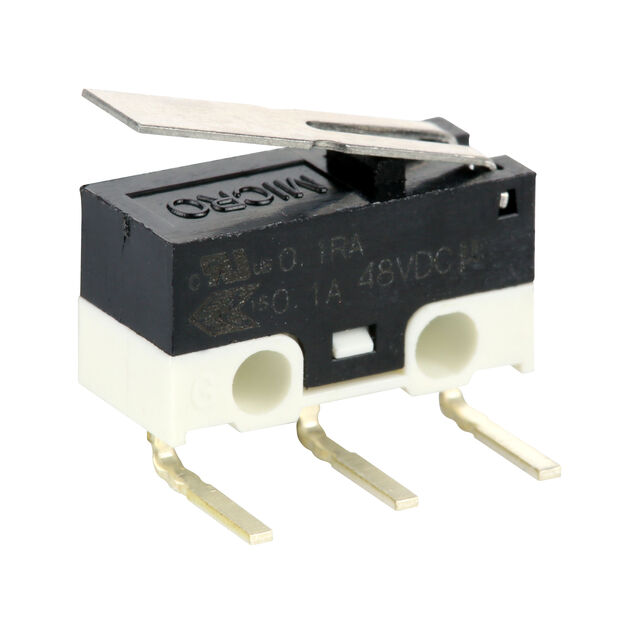

Honeywell Sensing and Productivity Solutions ZX10E50C01	1000000 Cycles	8 gf	0.025 in	0.6 mm	0.05 in	1.3 mm	48 V	48 gf	On-Mom	PC Pin	1000000 Cycles	Right Angle Through Hole	Lever Straight	8.4 mm	0.33 in	100 mA	120 °C	-40 C	SPDT	0.134 "	3.4 mm

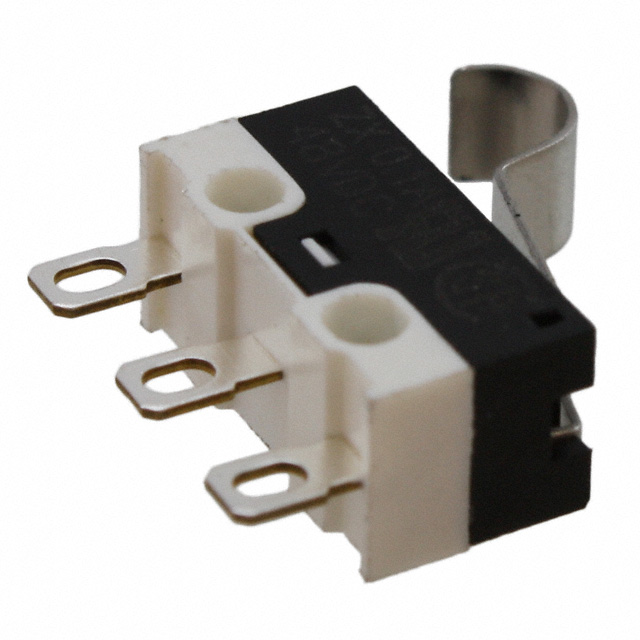

Honeywell Sensing and Productivity Solutions ZX10E10E01	1000000 Cycles	8 gf	0.025 in	0.6 mm	0.05 in	1.3 mm	48 V	55 gf	On-Mom	Solder Lug	1000000 Cycles	Chassis Mount	Lever Simulated Roller	11.1 mm	0.437 "	100 mA	120 °C	-40 C	SPDT	0.15 in	3.8 mm

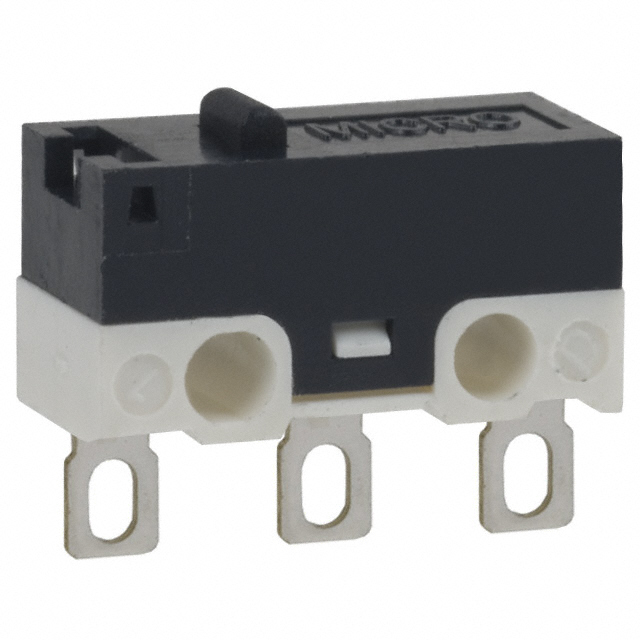

Honeywell Sensing and Productivity Solutions ZX10E10A01	1000000 Cycles	20 gf	0.008 in	0.2 mm	0.3 mm		48 V	150 gf	On-Mom	Solder Lug	1000000 Cycles	Chassis Mount	Round (Pin Plunger)	7 mm	0.276 in	100 mA	120 °C	-40 C	SPDT	0.051 in	1.3 mm	0.012 in
