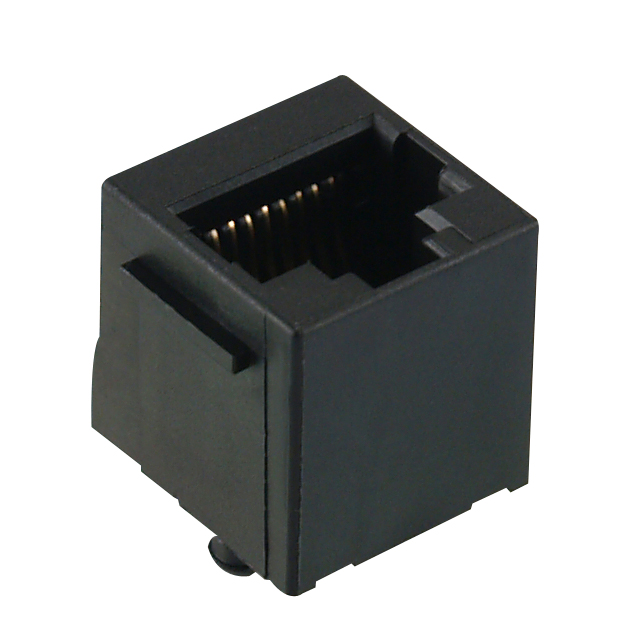

GDCX-PA Series
Manufacturer: Kycon, Inc.
Beta
⌘K
MODJACK PERPEND 6P4C P/STOPS BLK
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Orientation | Contact Finish | LED Color | Tab Direction | Mounting Type | Number of Rows | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Features | Number of Ports | Connector Type | Termination | Contact Material | Shielding | Contact Finish Thickness | Number of Positions/Contacts | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 50 µin | 1.27 µm | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Vertical | Gold | Does Not Contain LED | User Selectable | Through Hole | 1 | 4 | 6 | Board Guide Board Lock Panel Stop | 1 | Jack | Solder | Phosphor Bronze | Unshielded | ||||
 Kycon, Inc. | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Vertical | Gold | Does Not Contain LED | User Selectable | Through Hole | 1 | Board Guide Board Lock Panel Stop | 1 | Jack | Solder | Phosphor Bronze | Unshielded | Flash | 8p8c (RJ45 Ethernet) | ||||||
Kycon, Inc. | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Vertical | Gold | Does Not Contain LED | User Selectable | Through Hole | 1 | Board Guide Board Lock Panel Stop | 1 | Jack | Solder | Phosphor Bronze | Unshielded | Flash | 4 contacts | 4 positions |
