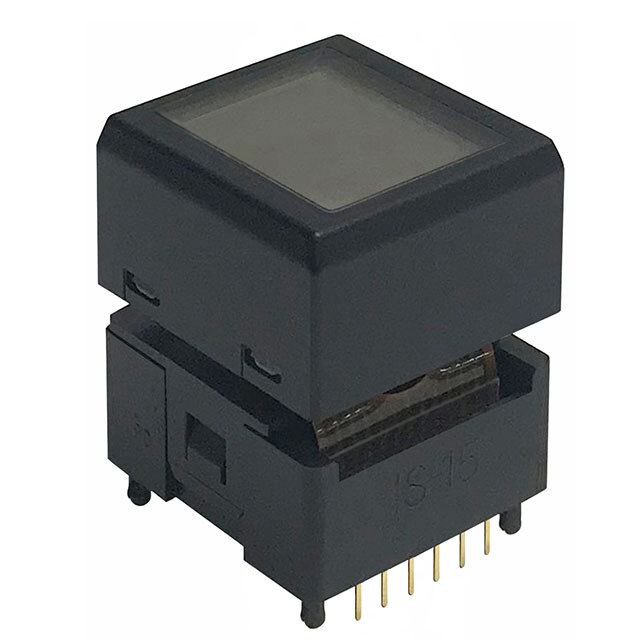

IS15BSB Series

Catalog

SW PROG DISPLAY SPST-NO 0.1A 12V

Part	LED Forward Voltage	Style	Operating Force	Travel Range [Max]	LED Color	Face Size [x]	Face Size [y]	Mounting Type	Viewing Area [x]	Viewing Area [y]	Supply Voltage [Max]	Supply Voltage [Min]	Display Mode	Type	Circuit	Termination Style	Switch Function	Pixel Format [y]	Pixel Format [x]	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	LED Forward Current
NKK Switches IS15BSBFP4RGB-BLK	2 2.8 VDC 2.8	Compact	173 gf	1.8 mm	Blue Green Red	19 mm	18 mm	Through Hole	14.5 mm	11.8 mm	5.5 V	3 V	Black and White FSTN Positive	LCD Pushbutton	SPST-NO	PC Pin	Off-Mom	24	36	0.1 A 12 VDC	50 °C	-15 °C
NKK Switches IS15BSBFP4RGB	2 2.8 VDC 2.8	Compact	173 gf	1.8 mm	Blue Green Red	19 mm	18 mm	Through Hole	14.5 mm	11.8 mm	5.5 V	3 V	Black and White FSTN Positive	LCD Pushbutton	SPST-NO	PC Pin	Off-Mom	24	36	0.1 A 12 VDC	50 °C	-15 °C
NKK Switches IS15BSBFP4EF	1.9 VDC 3.2 VDC	Compact	173 gf	1.8 mm	Yellow - Green	19 mm	18 mm	Through Hole	14.5 mm	11.8 mm	5.5 V	3 V	Black and White FSTN Positive	LCD Pushbutton	SPST-NO	PC Pin	Off-Mom	24	36	0.1 A 12 VDC	50 °C	-15 °C	15 mA 15
