HT 1/4 Series

Catalog

SPIRAL WRAP 0.16" X 100' BLACK

Part	Length	Length	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material	Type	Wall Thickness [custom]	Wall Thickness [custom]	Features	Heat Protection	Material Flammability Rating	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Color	Type Attributes	Abrasion Protection	Environment Protection [custom]	Wall Thickness	Wall Thickness
MM Newman Corporation HT 1/4 R-B	100 '	30.48 m	2 in	50.8 mm	80 °C	-20 ░C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant	Fire Resistant	UL1441 UL94 V-2	0.25 in	6.35 mm	Black	Harness	Abrasion Resistant
MM Newman Corporation HT 1/4 N-B	100 '	30.48 m	2 in	50.8 mm	121 C	-40 C	0.2 in	5.08 mm	Nylon	Spiral Wrap			Chemical Resistant Self Extinguishing Solvent Resistant			0.25 in	6.35 mm	Black	Harness	Abrasion Resistant	UV Resistant	0.64 mm	0.025 in
MM Newman Corporation HT 1/4 N	100 '	30.48 m	2 in	50.8 mm	121 C	-40 C	0.2 in	5.08 mm	Nylon	Spiral Wrap			Chemical Resistant Self Extinguishing Solvent Resistant			0.25 in	6.35 mm	Natural	Harness	Abrasion Resistant		0.64 mm	0.025 in
MM Newman Corporation HT 1/4 T	100 '	30.48 m	2 in	50.8 mm	260 °C	-268 °C	0.187 in	4.75 mm	Polytetrafluoroethylene (PTFE)	Spiral Wrap		0.03 "	Chemical Resistant Solvent Resistant	Fire Resistant	UL VW-1 UL94 V-0	0.25 in	6.35 mm	Natural	Harness	Abrasion Resistant	UV Resistant	0.76 mm
MM Newman Corporation HT 1/4 C BLU	100 '	30.48 m	2 in	50.8 mm	88 °C	-60 °C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant			0.25 in	6.35 mm	Blue	Harness	Abrasion Resistant

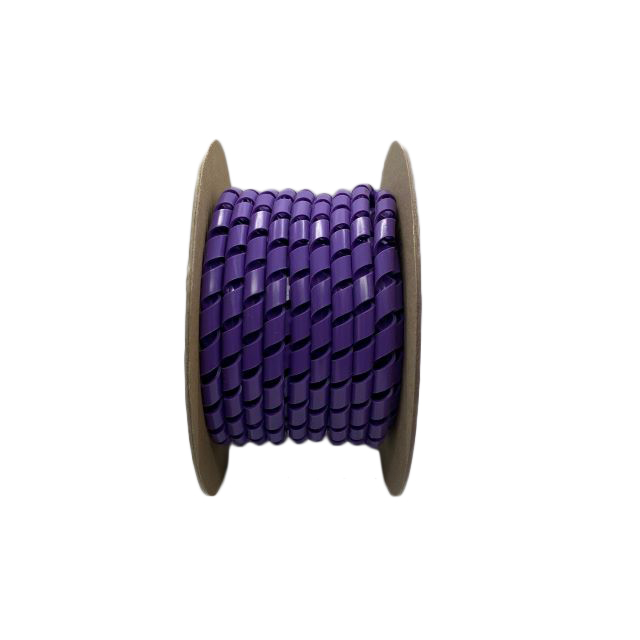

MM Newman Corporation HT 1/4 C PU	100 '	30.48 m	2 in	50.8 mm	88 °C	-60 °C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant			0.25 in	6.35 mm	Purple	Harness	Abrasion Resistant

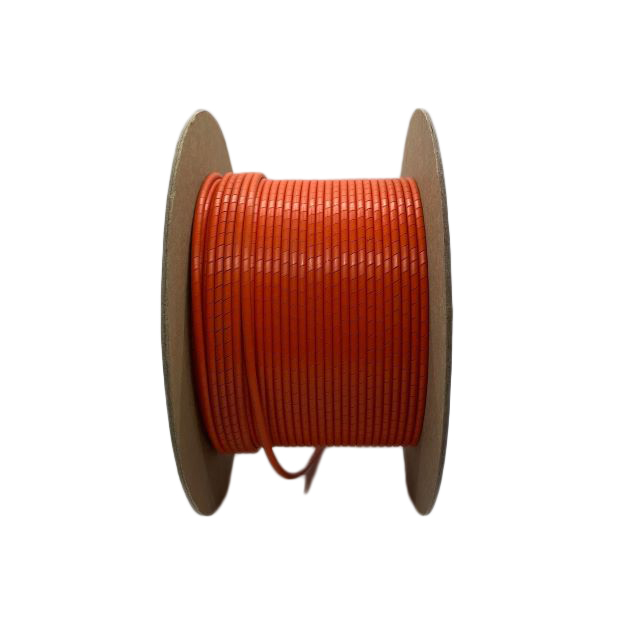

MM Newman Corporation HT 1/4 C OR	100 '	30.48 m	2 in	50.8 mm	88 °C	-60 °C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant			0.25 in	6.35 mm		Harness	Abrasion Resistant
MM Newman Corporation HT 1/4 R	100 '	30.48 m	2 in	50.8 mm	80 °C	-20 ░C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant	Fire Resistant	UL1441 UL94 V-2	0.25 in	6.35 mm	White	Harness	Abrasion Resistant

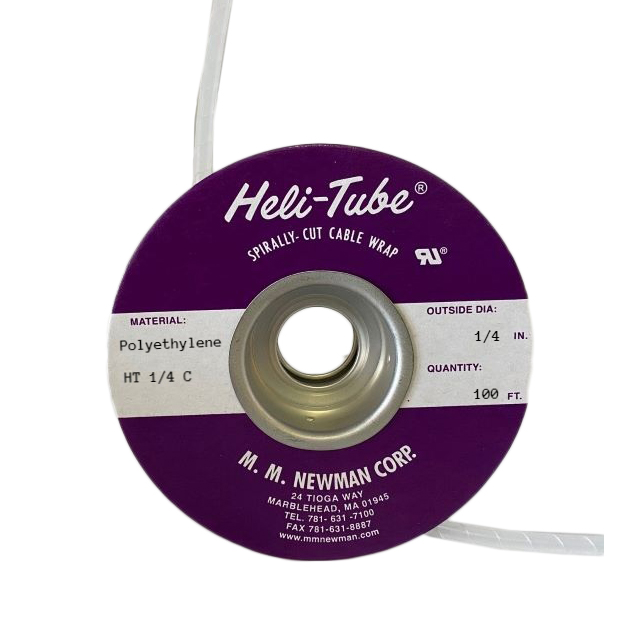

MM Newman Corporation HT 1/4 C	100 '	30.48 m	2 in	50.8 mm	88 °C	-60 °C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant			0.25 in	6.35 mm	Natural	Harness	Abrasion Resistant

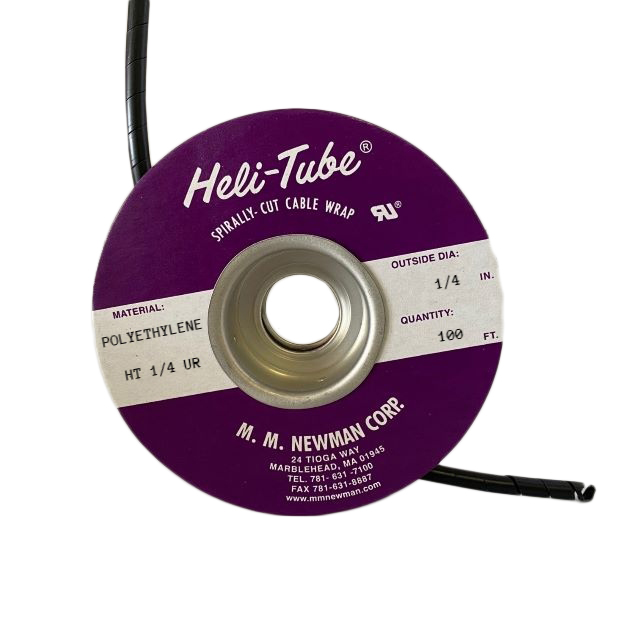

MM Newman Corporation HT 1/4 UR	100 '	30.48 m	2 in	50.8 mm	88 °C	-60 °C	0.16 "	4.06 mm	Polyethylene (PE)	Spiral Wrap	1.14 mm	0.045 in	Chemical Resistant Solvent Resistant			0.25 in	6.35 mm	Black	Harness	Abrasion Resistant
