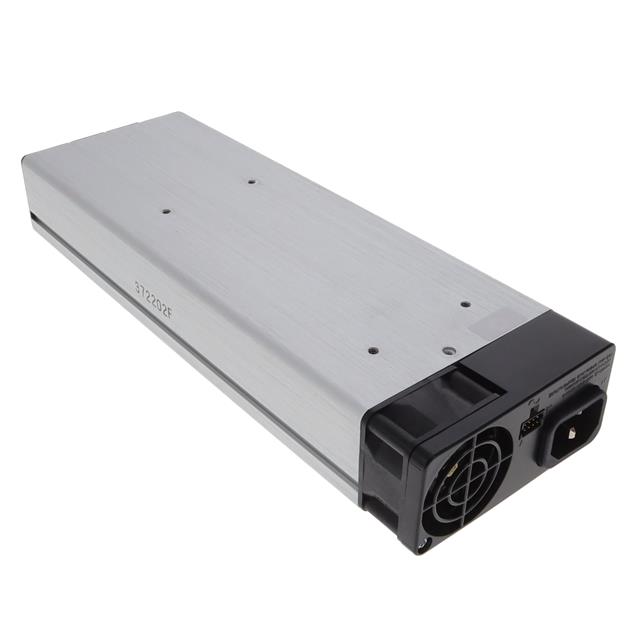

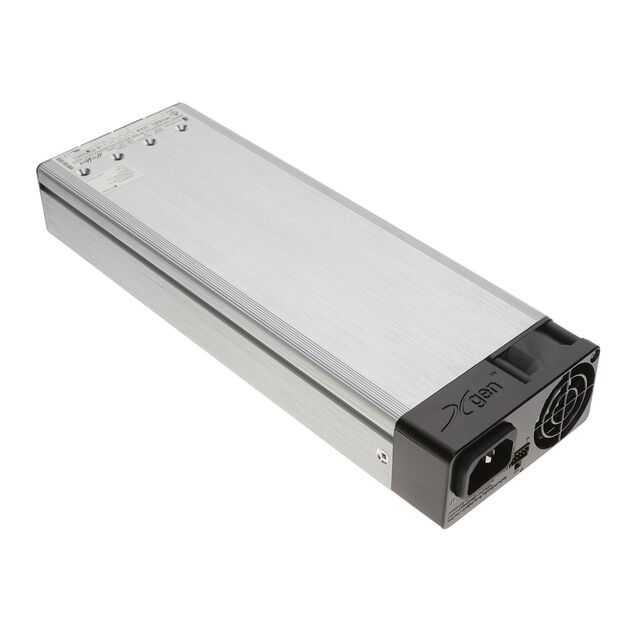

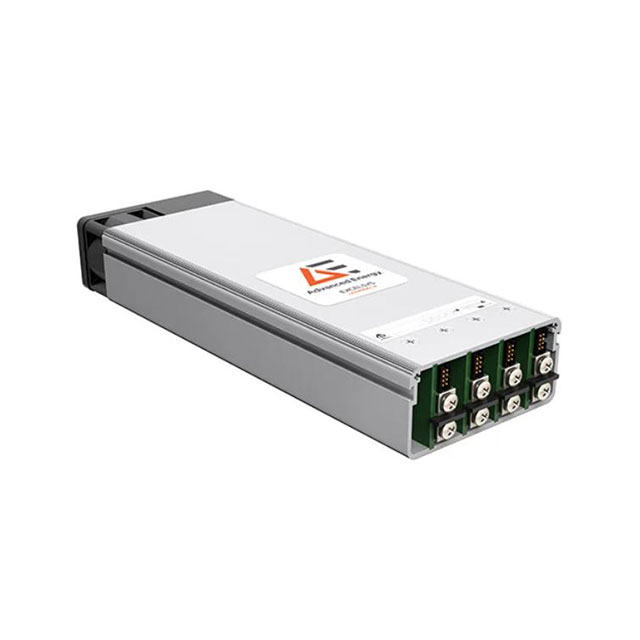

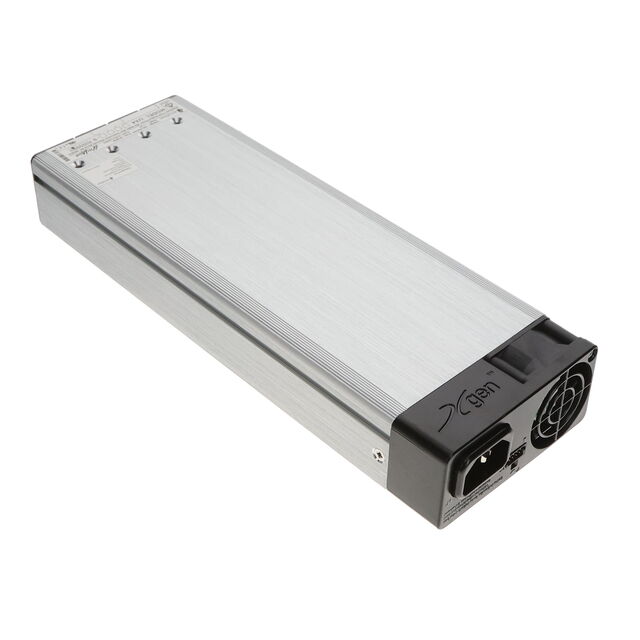

UX4 Series
Modular Power Supplies 4-slot, 600W powerPac with flying lead, 3-wire input
Manufacturer: EXCELSYS / Advanced Energy
Catalog
Modular Power Supplies 4-slot, 600W powerPac with flying lead, 3-wire input
Beta
⌘K
Modular Power Supplies 4-slot, 600W powerPac with flying lead, 3-wire input
Modular Power Supplies 4-slot, 600W powerPac with flying lead, 3-wire input
Modular Power Supplies 4-slot, 600W powerPac with flying lead, 3-wire input
| Part | Features | Features | Number of Positions | Size / Dimension [y] | Size / Dimension [x] | Cooling Type | Type | Approval Agency | Power (Watts) | Height | Height | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Current - Leakage | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EXCELSYS / Advanced Energy | Fan Fail Temperature Alarm | 5 VDC 500 mA | 4 | 3.5 in 89 mm | 10.24 " 260 mm | Fan - Reverse Airflow | Medical | CE | 600 W | 40.4 mm | 1.59 in | 264 VAC 380 VDC | 85 VAC 120 VDC | IEC 320-C14 | 150 µA | 4000 V | 90 % |
 EXCELSYS / Advanced Energy | Ruggedized | 5 VDC 500 mA | 4 | 3.5 in 89 mm | 10.24 " 260 mm | Fan - Standard Airflow | Medical | CE cURus | 600 W | 40.4 mm | 1.59 in | 264 VAC 380 VDC | 85 VAC 120 VDC | IEC 320-C14 | 4000 V | 90 % | |
 EXCELSYS / Advanced Energy | Fan Fail Temperature Alarm | 5 VDC 500 mA | 4 | 3.5 in 89 mm | 10.24 " 260 mm | Fan - Standard Airflow | Medical | CE | 600 W | 40.4 mm | 1.59 in | 264 VAC 380 VDC | 85 VAC 120 VDC | Wire Leads | 4000 V | 90 % | |
 EXCELSYS / Advanced Energy | Conformal Coating Fan Fail Reverse Fan Ruggedized Temperature Alarm | 4 | 3.5 in 89 mm | 10.24 " 260 mm | Medical | CE | 600 W | 40.4 mm | 1.59 in | 264 VAC 380 VDC | 85 VAC 120 VDC | 4000 V | 91 % | ||||
 EXCELSYS / Advanced Energy | 500mA Auxilary Output Conformal Coating Fan Fail Temperature Alarm | 5 VDC | 4 | 3.5 in 89 mm | 10.24 " 260 mm | Fan - Standard Airflow | Medical | CE cURus | 600 W | 40.4 mm | 1.59 in | 264 VAC 380 VDC | 85 VAC 120 VDC | IEC 320-C14 | 150 µA | 4000 V | 90 % |
 EXCELSYS / Advanced Energy | Fan Fail Temperature Alarm | 5 VDC 500 mA | 4 | 3.5 in 89 mm | 10.24 " 260 mm | Fan - Reverse Airflow | Medical | CE cURus | 600 W | 40.4 mm | 1.59 in | 264 VAC 380 VDC | 85 VAC 120 VDC | IEC 320-C14 | 4000 V | 90 % |
