LCB750 Series
Manufacturer: Panduit Corp
Beta
⌘K

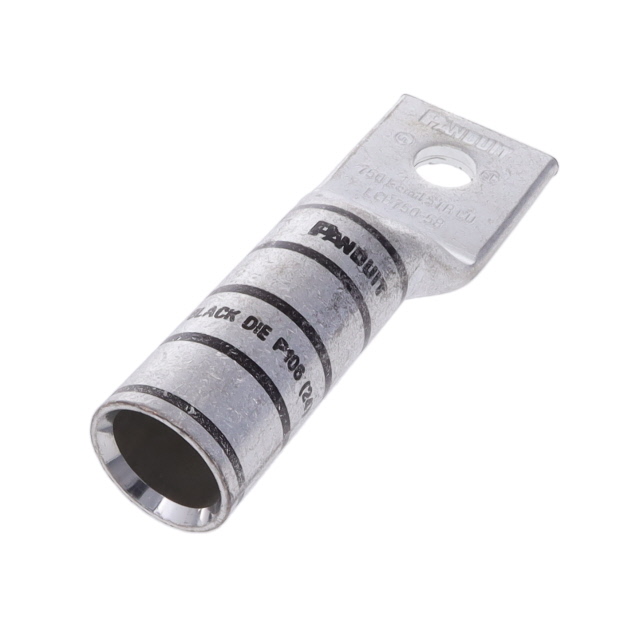

COPPER COMPRESSION LUG, 1 HOLE, 750 KCMI
| Part | Contact Finish | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Material | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Color | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Termination | Stud/Tab Size | Wire Gauge | Wire Gauge | Terminal Style | Insulation | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Electro-Tin | 1.03 in | 26.16 mm | Copper | 1.3 in | 33.02 mm | 16.76 mm | 0.66 in | Black | Free Hanging (In-Line) | 48.01 mm | 1.89 in | 151.89 mm | 5.98 " | 0.26 in | 6.6 mm | Barrel Crimp | 0.625 Stud | 750 MCM | 750 MCM | Single Stud Hole | Non-Insulated | Rectangular Tongue |
