FOD3180 Series

2 A Output Current, High Speed MOSFET Gate Driver Optocoupler

Catalog

2 A Output Current, High Speed MOSFET Gate Driver Optocoupler

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Output	Supplier Device Package	Mounting Type	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Propagation Delay tpLH / tpHL (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Approval Agency	Common Mode Transient Immunity (Min) [Min]	Pulse Width Distortion (Max) [Max]	Voltage - Forward (Vf) (Typ)	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - DC Forward (If) (Max) [Max]	Technology	Number of Channels	Package / Case	Package / Case	Package / Case
ON Semiconductor FOD3180SV	100 °C	-40 °C	2.5 A	8-SMD	Surface Mount	20 V	10 V	200 ns	55 ns	75 ns	cUL UL VDE	15 kV/µs	65 ns	1.43 V	2 A	2 A	25 mA	Optical Coupling	1
ON Semiconductor FOD3180SD	100 °C	-40 °C	2.5 A	8-SMD	Surface Mount	20 V	10 V	200 ns	55 ns	75 ns	cUL UL	15 kV/µs	65 ns	1.43 V	2 A	2 A	25 mA	Optical Coupling	1

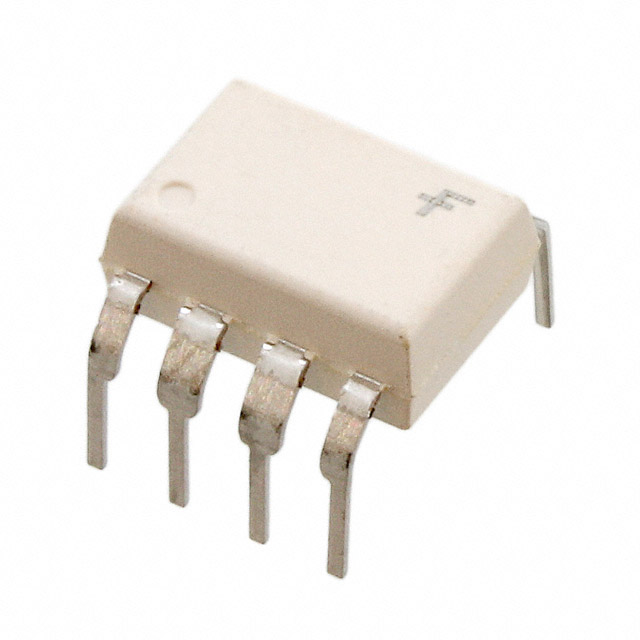

ON Semiconductor FOD3180TV	100 °C	-40 °C	2.5 A	8-MDIP	Through Hole	20 V	10 V	200 ns	55 ns	75 ns	cUL UL VDE	15 kV/µs	65 ns	1.43 V	2 A	2 A	25 mA	Optical Coupling	1	10.16 mm	8-DIP	10.16 mm
ON Semiconductor FOD3180TSV	100 °C	-40 °C	2.5 A	8-SMD	Surface Mount	20 V	10 V	200 ns	55 ns	75 ns	cUL UL VDE	15 kV/µs	65 ns	1.43 V	2 A	2 A	25 mA	Optical Coupling	1
ON Semiconductor FOD3180SDV	100 °C	-40 °C	2.5 A	8-SMD	Surface Mount	20 V	10 V	200 ns	55 ns	75 ns	cUL UL VDE	15 kV/µs	65 ns	1.43 V	2 A	2 A	25 mA	Optical Coupling	1

Catalog

2 A Output Current, High Speed MOSFET Gate Driver Optocoupler

Key Features

• Guaranteed operating temperature range of -40°C to+100°C

• 2 A minimum peak output current

• High-speed response: 200 ns max propagation delayover temperature range

• 250 kHz maximum switching speed

• 30 ns typ. pulse width distortion

• Wide VCCoperating range: 10 V to 20 V

• 5000Vrms, 1 minute isolation

• Under voltage lockout protection (UVLO) withhysteresis

• Minimum creepage distance of 7.0 mm

• Minimum clearance distance of 7.0 mm

• C-UL, UL and VDE* safety agency approvals pending

• RDS(ON)of 1.5 Ω (typ.) offers lower power dissipation

• 10 kV/m minimum common mode rejection

Description

The FOD3180 is a 2 A output current, high-speed MOSFET gate drive optocoupler. It consists of a aluminium gallium arsenide (AlGaAs) light emitting diode optically (LED) coupled to a CMOS detector with PMOS and NMOS output power transistors integrated circuit power stage. It is ideally suited for high frequency driving of power MOSFETs used in Plasma Display Panels (PDPs), motor control inverter applications, and high performance DC-DC converters.The device is packaged in an 8-pin dual in-line housing compatible with 260°C reflow processes for lead free solder compliance.
