AMP-LATCH Universal Headers Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CONN HEADER VERT 34POS 2.54MM

...

Part	Number of Positions [custom]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Material Flammability Rating	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Style	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Shrouding	Mounting Type	Number of Rows [custom]	Fastening Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post [custom]	Contact Length - Post	Voltage Rating	Contact Length - Post
TE Connectivity AMP Connectors 5746443-8	34	0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	Phosphor Bronze	UL94 V-0	Header	0.24 in	6.1 mm	0.174 in	4.42 mm	105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin	0.549 in	13.94 mm	0.703 "	17.86 mm	Shrouded - 4 Wall	Through Hole	2	Latch Lock/Eject Hooks	Press-Fit Solder

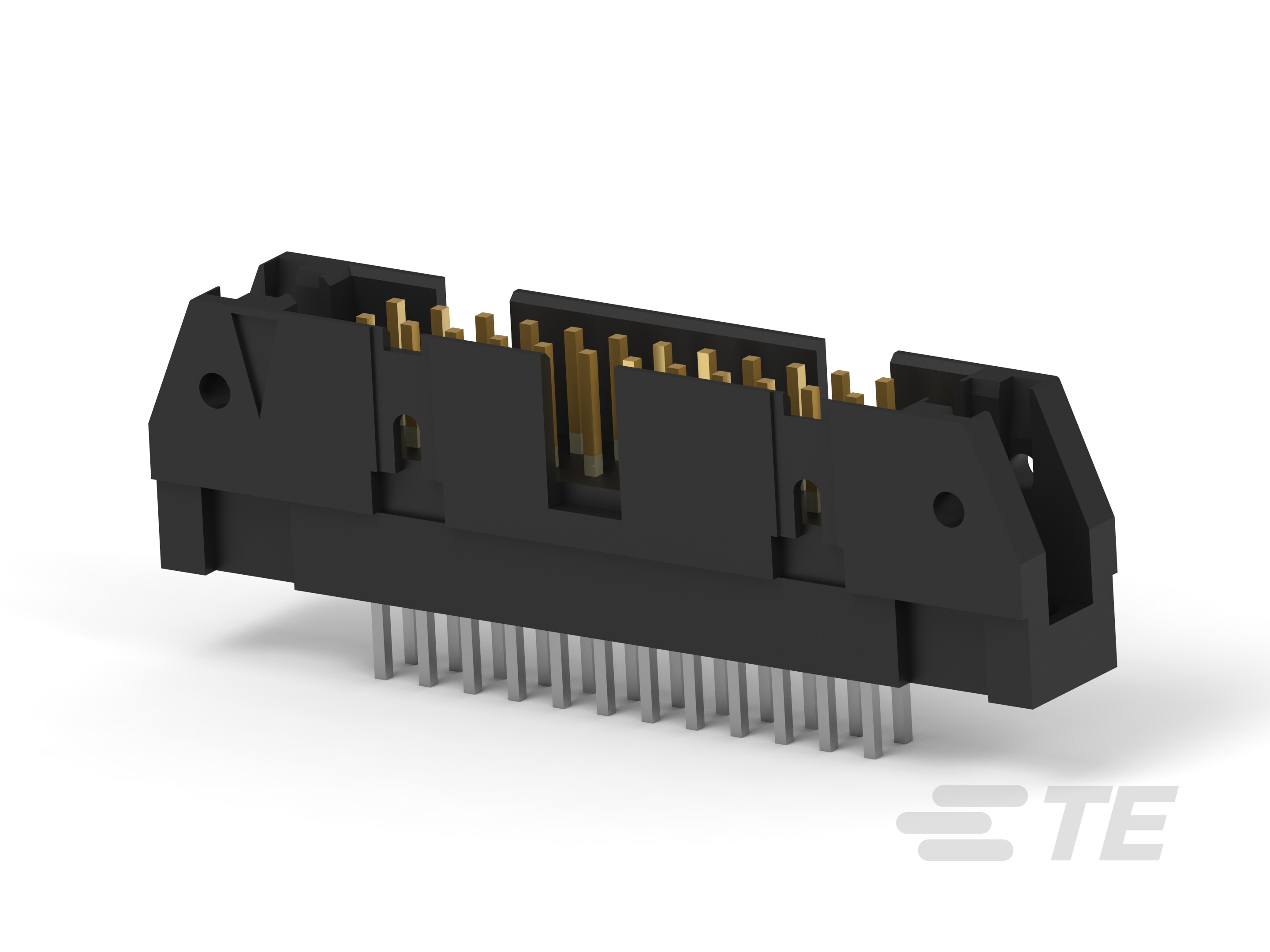

TE Connectivity AMP Connectors 1658694-9		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	Phosphor Bronze	UL94 V-0	Header	0.24 in	6.1 mm	0.174 in	4.42 mm	105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin	0.549 in	13.94 mm	0.703 "	17.86 mm	Shrouded - 4 Wall	Through Hole	2	Push-Pull	Press-Fit Solder	2.54 µm	100 µin	24

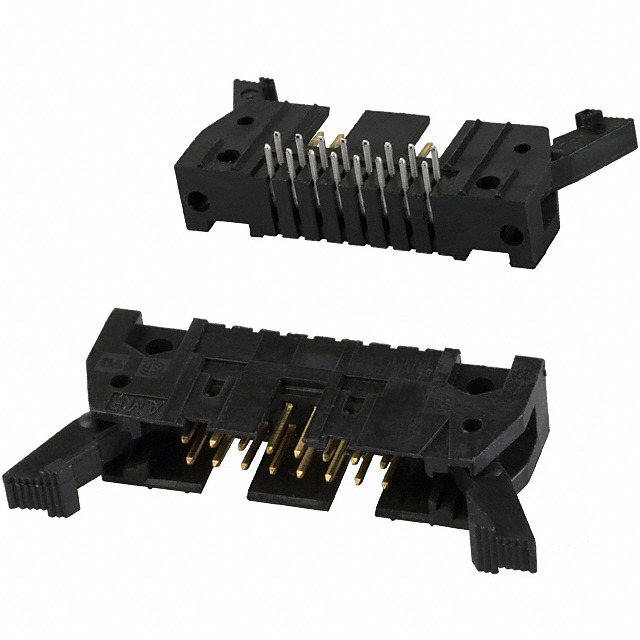

TE Connectivity AMP Connectors 5499913-3		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.38 µm	15 µin	Brass	UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin	0.315 in	8 mm			Shrouded - 4 Wall	Right Angle Through Hole	2	Latch Lock/Eject Hooks	Solder			16	0.11 in	2.79 mm	250 VAC
TE Connectivity AMP Connectors 499923-6		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.38 µm	15 µin		UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin-Lead	0.549 in	13.94 mm	0.684 in	17.37 mm	Shrouded - 4 Wall	Through Hole	2	Latch Lock/Eject Hooks Long	Solder			26		3.94 mm	250 VAC	0.155 "
TE Connectivity AMP Connectors 2-5102160-2		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	Brass	UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Blue	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin	0.315 in	8 mm			Shrouded - 4 Wall	Right Angle Through Hole	2	Push-Pull	Solder			14	0.11 in	2.79 mm	250 VAC
TE Connectivity AMP Connectors 5499141-7		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	Brass	UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin	0.315 in	8 mm			Shrouded - 4 Wall	Right Angle Through Hole	2	Latch Lock/Eject Hooks Long	Solder			30	0.11 in	2.79 mm	250 VAC
TE Connectivity AMP Connectors 1-5102321-0		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin		UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin	0.549 in	13.94 mm	0.684 in	17.37 mm	Shrouded - 4 Wall	Through Hole	2	Latch Lock/Eject Hooks Long	Solder	2.54 µm	100 µin	50		3.94 mm	250 VAC	0.155 "
TE Connectivity AMP Connectors 499913-3		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.38 µm	15 µin	Brass	UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin-Lead	0.315 in	8 mm			Shrouded - 4 Wall	Right Angle Through Hole	2	Latch Lock/Eject Hooks	Solder	2.54 µm	100 µin	16	0.11 in	2.79 mm	250 VAC
TE Connectivity AMP Connectors 499922-5		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.38 µm	15 µin		UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All		Board to Cable/Wire	Male Pin	Tin-Lead	0.549 in	13.94 mm	0.639 in	16.23 mm	Shrouded - 4 Wall	Through Hole	2	Latch Lock/Eject Hooks Long	Solder			24	0.11 in	2.79 mm	250 VAC
TE Connectivity AMP Connectors 102156-9		0.1 "	2.54 mm	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin		UL94 V-0	Header	0.24 in	6.1 mm			105 ░C	-65 ░C	Black	Gold or Gold-Palladium	All	1 A	Board to Cable/Wire	Male Pin	Tin-Lead	0.549 in	13.94 mm	0.684 in	17.37 mm	Shrouded - 4 Wall	Through Hole	2	Push-Pull	Solder			40		3.94 mm	250 VAC	0.155 "
