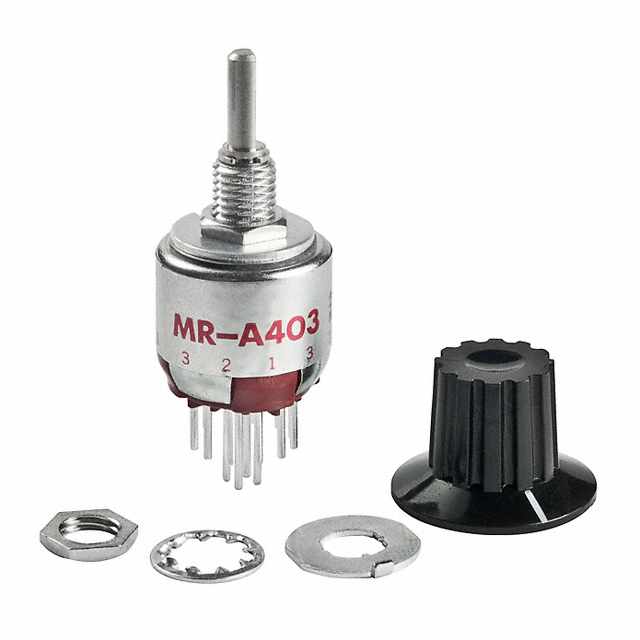

MRA403 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROTARY 2-3POS 250MA 125V
| Part | Panel Cutout Dimensions [diameter] | Actuator Type | Index Stops | Depth Behind Panel [z] | Actuator Length [x] | Circuit per Deck | Termination Style | Contact Material | Contact Timing | Contact Finish | Voltage Rating - AC | Current Rating (Amps) | Features | Angle of Throw | Number of Positions [Min] | Number of Positions [Max] | Number of Decks [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.25 in | Knob | Adjustable | 17 mm | 15.8 mm | 4P3T | PC Pin | Copper | Non-Shorting (BBM) | Silver | 125 V | 250 mA | Process Sealed | 30 ° | 2 | 3 | 1 | Panel Mount Through Hole |
 NKK Switches | 0.25 in | Knob | Adjustable | 17 mm | 13 mm | 4P3T | PC Pin | Copper | Non-Shorting (BBM) | Silver | 125 V | 250 mA | Process Sealed | 30 ° | 2 | 3 | 1 | Panel Mount Through Hole |
