5073C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

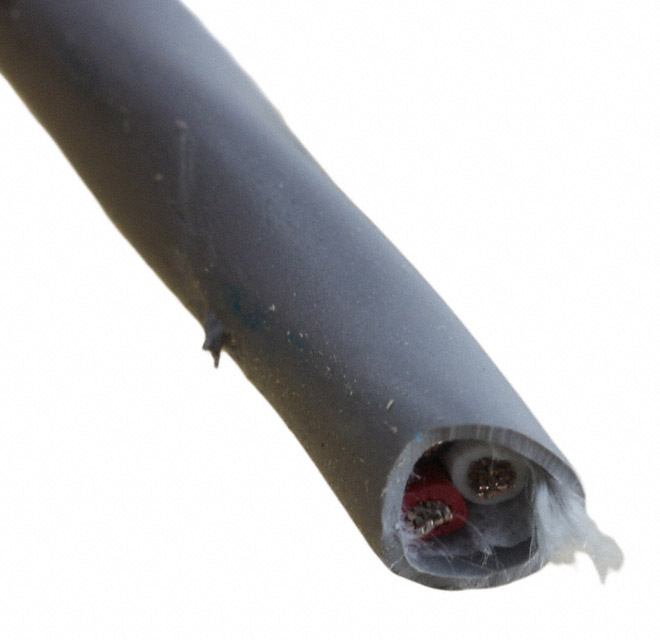

CBL 3COND 16AWG SLATE 1000=1000'
| Part | Conductor Insulation | Cable Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Usage | Conductor Strand [custom] | Conductor Strand [diameter] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Number of Conductors | Jacket (Insulation) Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | -35 °C | 105 ░C | Copper Tinned | Communication Control | 19 | 0.0117 in | 300 VDC | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | 3 | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 0.264 in | 6.71 mm | 16 AWG | ||
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | -35 °C | 105 ░C | Copper Tinned | Communication Control | 19 | 0.0117 in | 300 VDC | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | 3 | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 0.264 in | 6.71 mm | 16 AWG | 152.4 m | 500 ft |
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | -35 °C | 105 ░C | Copper Tinned | Communication Control | 19 | 0.0117 in | 300 VDC | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | 3 | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 0.264 in | 6.71 mm | 16 AWG | 304.8 m | 1000 ft |
