846-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K

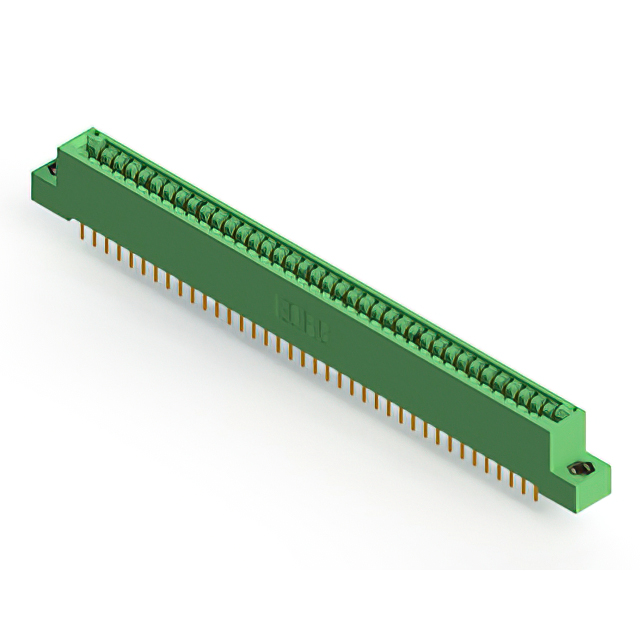

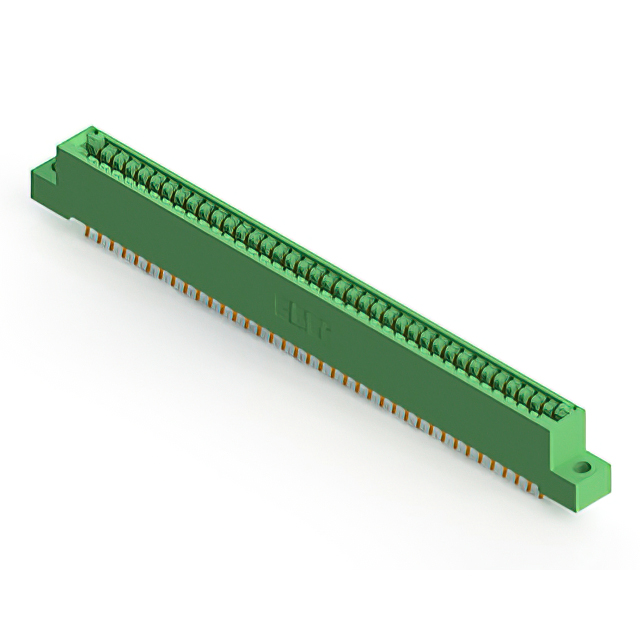

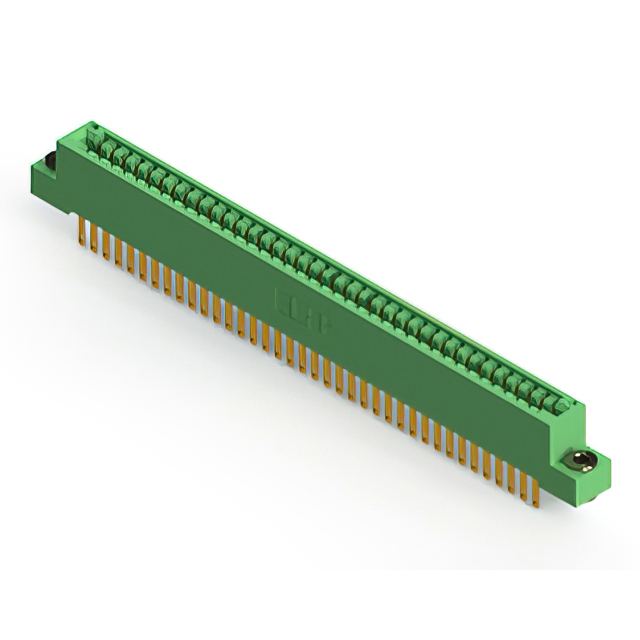

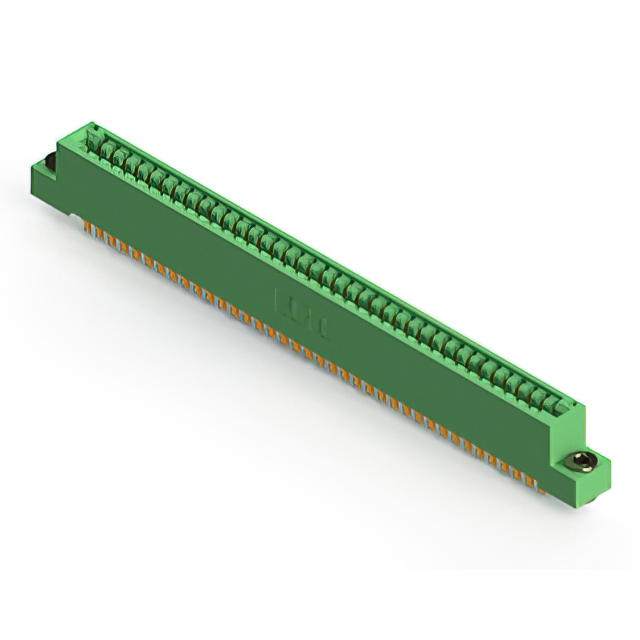

CONN EDGE DUAL FMALE 76POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Contact Material | Color | Card Type | Pitch | Pitch | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Termination | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | Card Extender | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Board Edge Straddle Mount | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Dual | Through Hole | Cantilever | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Dual | Through Hole | Cantilever | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Through Hole | Cantilever | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | Dual | Through Hole | Cantilever | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | Card Extender | 4-40 Threaded Insert Top Mount Opening | Dual | Board Edge Straddle Mount | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | Dual | Through Hole | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Dual | Through Hole | Cantilever | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Dual | Right Angle Through Hole | Cantilever | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 76 | Copper Alloy | Green | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | 125 °C | -40 C | 38 | 2 | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Dual | Through Hole | Cantilever |
