2351378 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

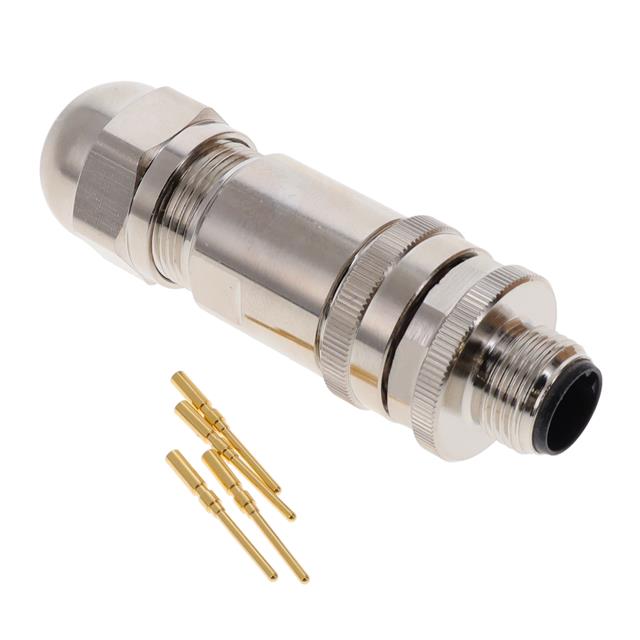

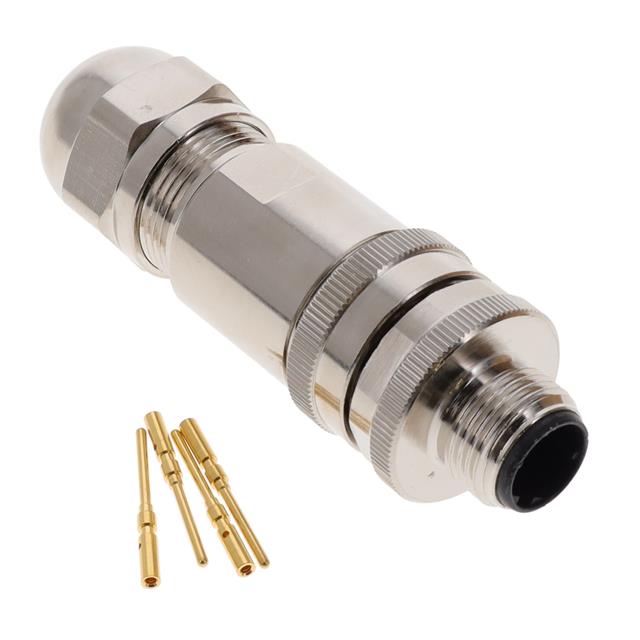

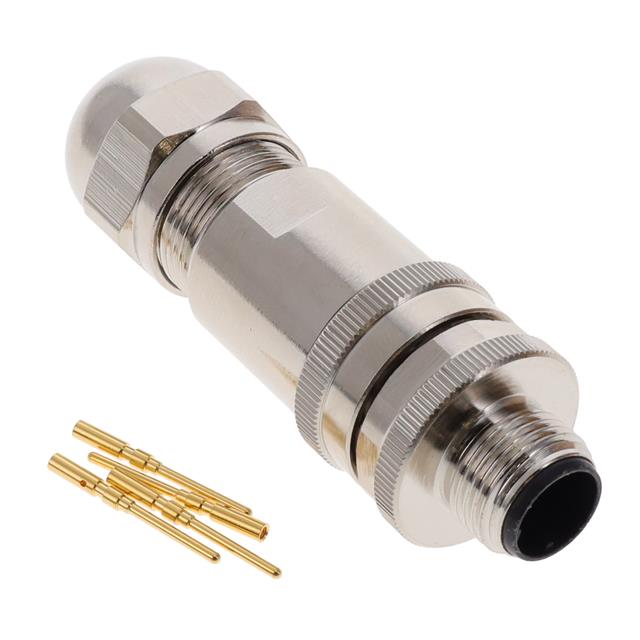

M12 MALE,D4 CODE,STR CONNECTOR,
| Part | Number of Positions | Contact Type | Shell Finish | Shell Material | Type | Note | Primary Material | Ingress Protection | Shielding | Shell Size - Insert | Contact Shape | Insert Material | Features | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Connector Type | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4 | Crimp | Nickel | Brass | For Male Pins | Contacts Not Included | Metal | IP67 - Dust Tight Waterproof | Shielded | M12-4 | Circular | Nylon Polyamide (PA) | Backshell Railway (EN45545 IEC61373) | Silver | 85 °C | -40 °C | D | Plug Housing | UL94 V-0 | Free Hanging (In-Line) |
 TE Connectivity Raychem Cable Protection | 4 | Crimp | Nickel | Brass | For Male Pins | Contacts Not Included | Metal | IP67 - Dust Tight Waterproof | Shielded | M12-4 | Circular | Nylon Polyamide (PA) | Backshell Railway (EN45545 IEC61373) | Silver | 85 °C | -40 °C | D | Plug Housing | UL94 V-0 | Free Hanging (In-Line) |
 TE Connectivity Raychem Cable Protection | 4 | Crimp | Nickel | Brass | For Male Pins | Contacts Not Included | Metal | IP67 - Dust Tight Waterproof | Shielded | M12-4 | Circular | Nylon Polyamide (PA) | Backshell Railway (EN45545 IEC61373) | Silver | 85 °C | -40 °C | D | Plug Housing | UL94 V-0 | Free Hanging (In-Line) |
