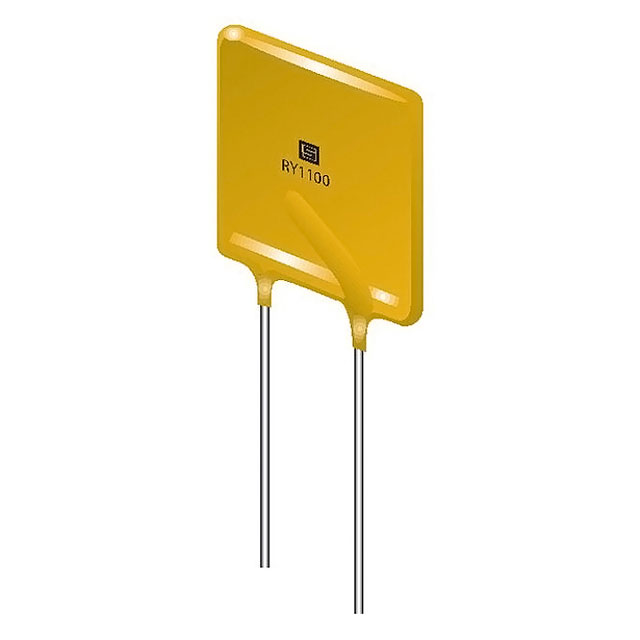

PFRY Series

Catalog

RESETTABLE FUSES - PPTC PFRY PTC FUSE THT 1.35A

Part	Approval Agency	Resistance - Post Trip (R1) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Current - Trip (It)	Package / Case	Type	Time to Trip	Voltage - Max [Max]
SCHURTER Inc. PFRY.135	cURus TUV	300 mOhms	0.12 Ohms	0.118 in	3 mm	12.26 mm	0.483 in	40 A	Through Hole	1.35 A	85 °C	-40 C	18.3 mm	0.72 in	0.201 in	5.1 mm	2.7 A	Disc Radial	Polymeric	9.6 s	72 V
