ANT-B8 Series

Catalog

ANTENNA 1/4 WAVE WHIP LTE B8 RG174

Part	VSWR	Frequency Range [Min]	Frequency Range [Max]	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Features	Number of Bands	Antenna Type	RF Family/Standard	Power - Max [Max]	Gain	Frequency (Center/Band)	Termination	Applications	Mounting Type	Height (Max) [z]	Height (Max) [z]
TE Connectivity AMP Connectors ANT-B8-PW-QW	2	870 MHz	960 MHz	1 GHz	UHF	300 MHz	Cable - 216mm O-Ring Compatible	1	Whip Straight	Cellular	10 W	1.6 dBi	920 MHz	Solder	Cellular GSM LTE NB-IoT UMTS	Panel Mount	90.3 mm	3.555 in

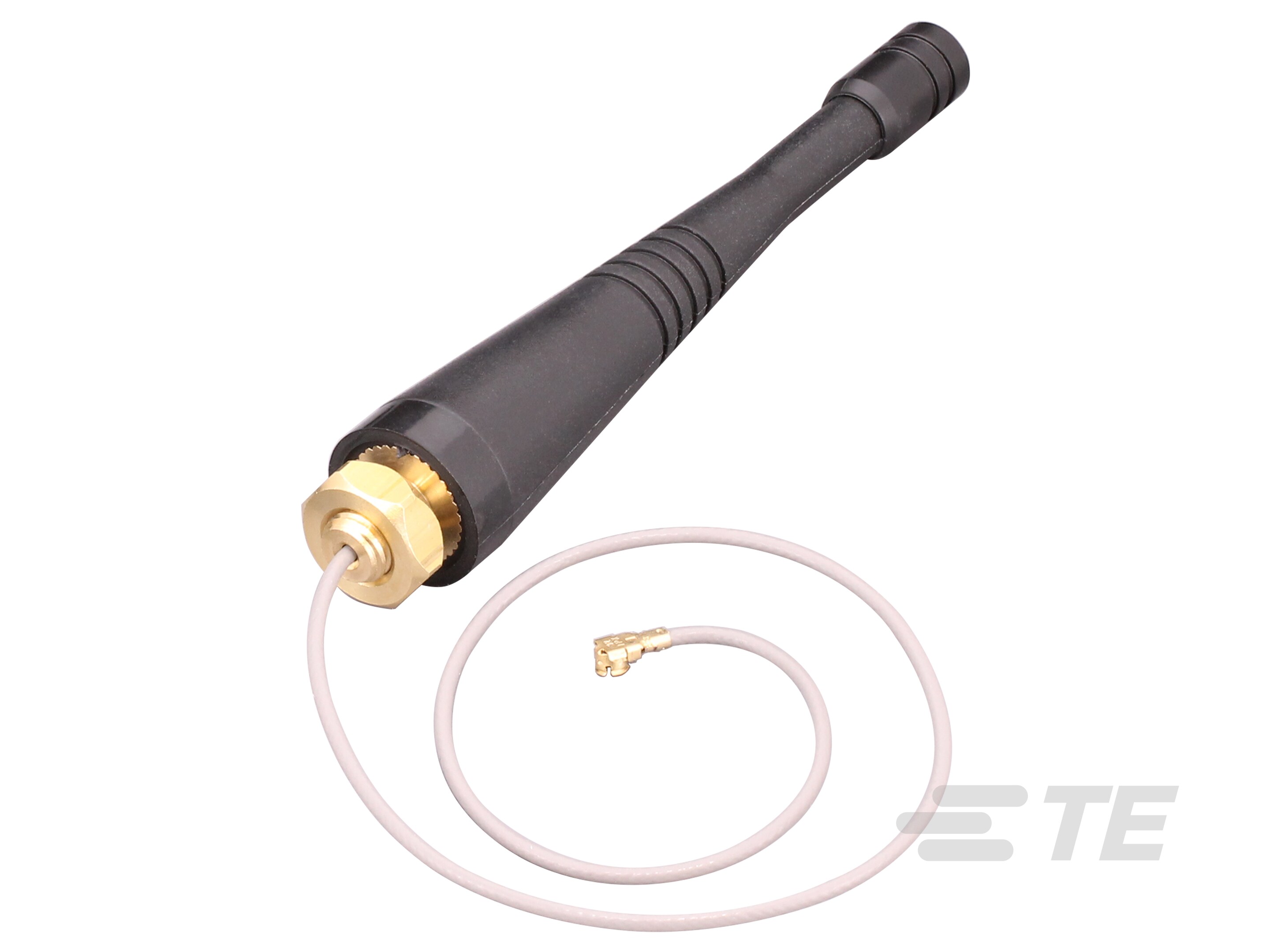

TE Connectivity AMP Connectors ANT-B8-PW-QW-UFL	2	870 MHz	960 MHz	1 GHz	UHF	300 MHz	Cable - 216mm O-Ring Compatible	1	Whip Straight	Cellular	10 W	1.6 dBi	920 MHz	I-PEX MHF1 U.FL (UMCC)	Cellular GSM LTE NB-IoT UMTS	Panel Mount	90.3 mm	3.555 in

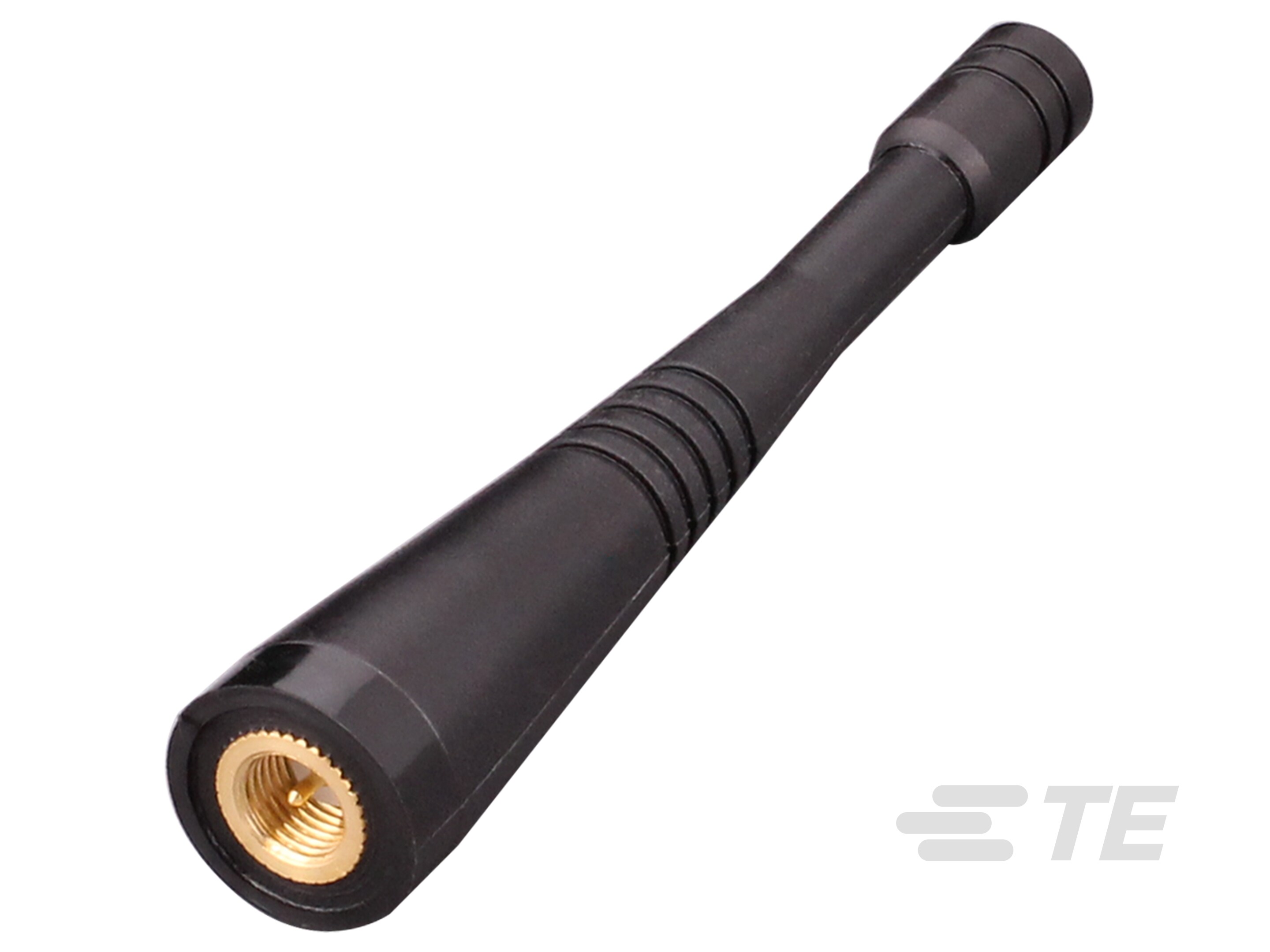

TE Connectivity AMP Connectors ANT-B8-CW-QW-SMA	2	870 MHz	960 MHz	1 GHz	UHF	300 MHz	O-Ring Compatible	1	Whip Straight	Cellular	10 W	1.6 dBi	800 MHz 850 MHz 900 MHz 915 MHz		GSM LTE NB-IoT UMTS	Connector Mount	90.3 mm	3.555 in
