1054426 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

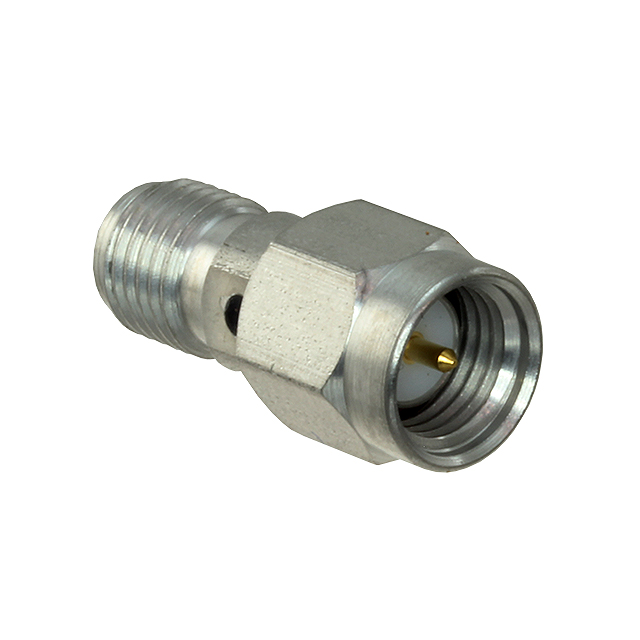

COAX ADAPT OSM TO OSM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Material | Mating Cycles | Adapter Series | Convert To (Adapter End) | Adapter Type | Conversion Type | Frequency - Max [Max] | Mounting Type | Convert From (Adapter End) | Style | Center Contact Plating | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | 500 | OSM to OSM | SMA Jack Female Socket | Plug to Jack | Same Series | 18 GHz | Free Hanging (In-Line) | Male Pin SMA Plug | Straight | Gold | 50 Ohms |
