0FHM0002ZXJL Series

INLINE MINI HOLDER - 94/94 RD/ORNG

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

INLINE MINI HOLDER - 94/94 RD/ORNG

Part	Current Rating (Amps)	For Use With/Related Products	Fuse Type	Termination Style	Fuseholder Type	Mounting Type	Voltage	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Number of Circuits
Littelfuse/Commercial Vehicle Products 0FHM0002ZXJL	20 A	Miniature (ATM)	Blade	Wire Leads	Holder	Free Hanging (In-Line)	32 V	0.433 "	0.152 "	11 mm	3.85 mm	1

Catalog

INLINE MINI HOLDER - 94/94 RD/ORNG

Key Features

• Compatible with 32 V and 58 V MINI® blade fuses up to 30 A (sold separately)

• Black UL 94 V-0 TPV body and cover create an IP67-rated dustproof and waterproof enclosure

• Heat-resistant 12 AWG GXL cross-link wire leads with red and orange insulation

• 3.68" (93.5 mm) lead wires with 0.48" (12.2 mm) end strips

• Tin-plated copper alloy contacts

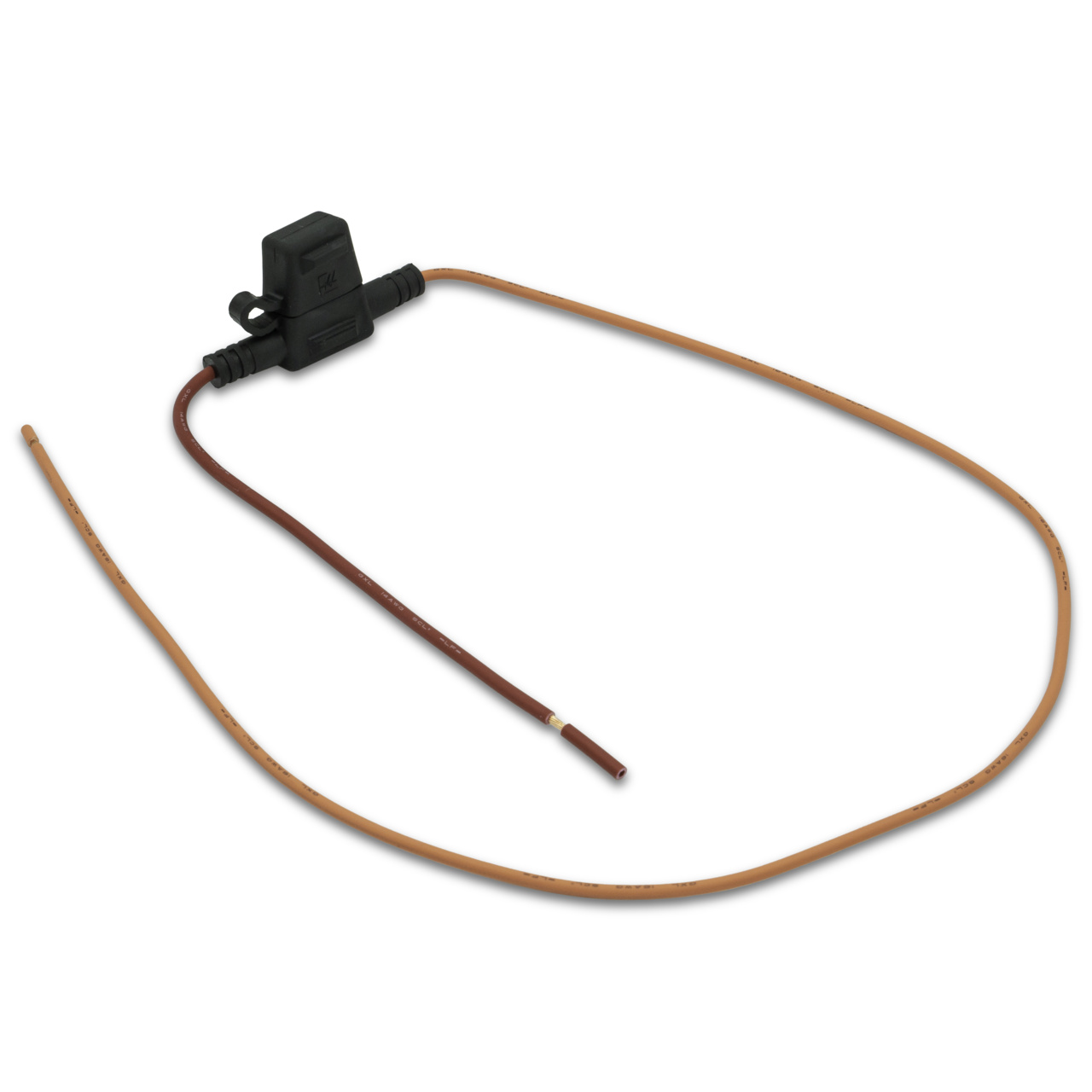

Description

The MINI® FHM Series 58V Heavy-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features a built-in cover that connects with the fuse holder body to form a sealed enclosure. The protective enclosure meets IP67 dustproof and waterproof standards. This model of the MINI® FHM Series fuse holder (0FHM0002ZXJL) features a black TPV body and cover and 12 AWG GXL wire leads for heavy-duty applications. The lead wires, one with red insulation and one with orange insulation, are 3.68" long and have 0.48" end strips. The UL 94 V-0-rated fuse holder accepts up to 30-amp MINI® blade fuses (sold separately).
