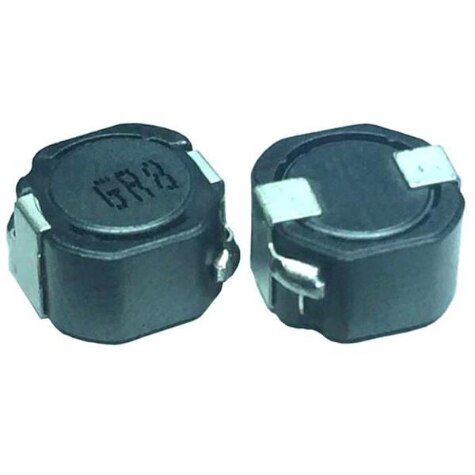

BPCA Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) FERRITE SMD SHIELDED TYPE & ULTRA HIGH CURRENT
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Inductance | Current Rating (Amps) | Shielding | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Package / Case | Material - Core | Tolerance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Saturation (Isat) | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 0.189 " | 4.8 mm | 0.276 in | 7 mm | 0.291 in | 7.4 mm | 22 µH | 2.2 A | Shielded | 100 kHz | 82.8 mOhm | Nonstandard | Ferrite | 20 % | Surface Mount | -40 C | 105 ░C | 1.6 A | |
 Pulse Electronics | 4.9 mm | 0.236 " | 6 mm | 0.248 in | 6.3 mm | 33 µH | 1.6 A | Shielded | 100 kHz | 120 mOhm | Nonstandard | Ferrite | 20 % | Surface Mount | -40 C | 105 ░C | 900 mA | 0.193 in |
