2157481 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

AMPLIMITE IP67, SZ2, 109, 15 POS, RCPT

Part	Note	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Shell Material, Finish	Contact Type	Shell Size, Connector Layout	Flange Feature	Mounting Type	Number of Rows [custom]	Connector Type	Ingress Protection	Number of Positions	Shell Size, Connector Layout	Contact Material	Current Rating (Amps)	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Contact Finish

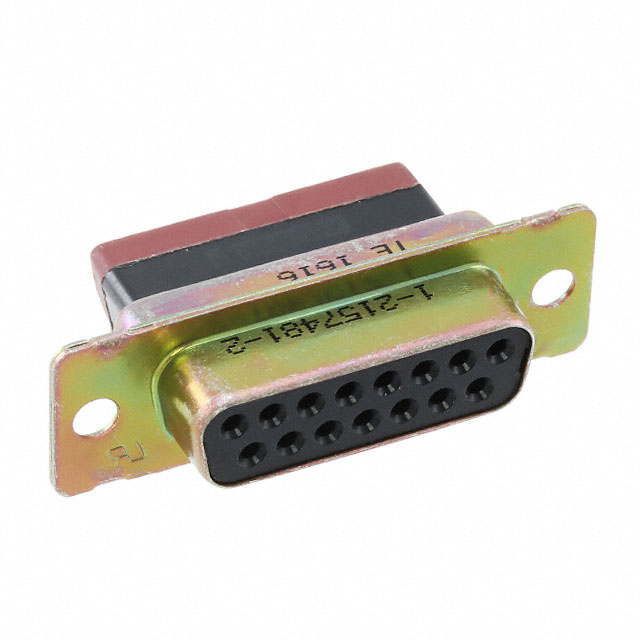

TE Connectivity AMP Connectors 1-2157481-2	Contacts Not Included	Polyester Glass Filled	125 °C	-50 °C	D-Sub	Cadmium Plated Steel	Signal	2	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	2	Receptacle for Female Contacts	IP67 - Dust Tight Waterproof	15

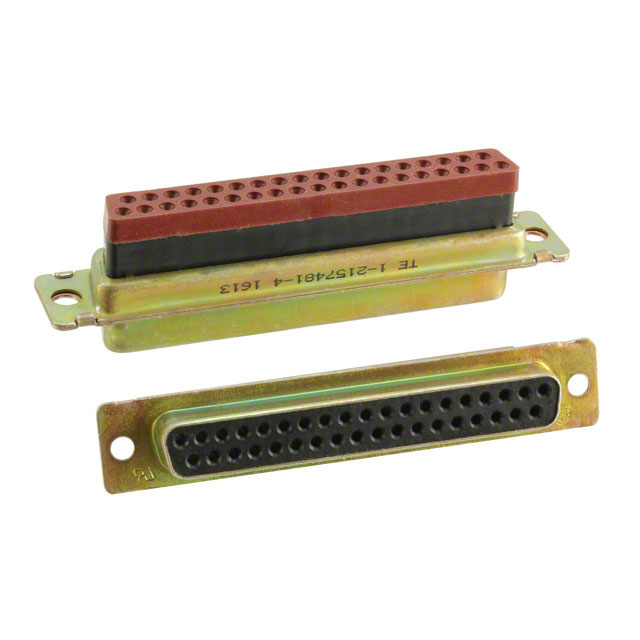

TE Connectivity AMP Connectors 1-2157481-4	Contacts Not Included	Polyester Glass Filled	125 °C	-50 °C	D-Sub	Cadmium Plated Steel	Signal	4	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	2	Receptacle for Female Contacts	IP67 - Dust Tight Waterproof	37	DC C
TE Connectivity AMP Connectors 2157481-5		Polyester Glass Filled	125 °C	-55 C	D-Sub	Cadmium Plated Steel	Signal		Housing/Shell (Unthreaded)	Free Hanging (In-Line)	3	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	50		Copper Alloy	7.5 A	Grommet	5	D DD	Crimp	Gold
TE Connectivity AMP Connectors 1-2157481-5	Contacts Not Included	Polyester Glass Filled	125 °C	-50 °C	D-Sub	Cadmium Plated Steel	Signal		Housing/Shell (Unthreaded)	Free Hanging (In-Line)	3	Receptacle for Female Contacts	IP67 - Dust Tight Waterproof	50					5	D DD
TE Connectivity AMP Connectors 1-2157481-1	Contacts Not Included	Polyester Glass Filled	125 °C	-50 °C	D-Sub	Cadmium Plated Steel	Signal		Housing/Shell (Unthreaded)	Free Hanging (In-Line)	2	Receptacle for Female Contacts	IP67 - Dust Tight Waterproof	9					1	DE E
