MS3124E22 Series

Catalog

MIL-26482 MS/PT/CMB RECEPT

Part	Applications	Contact Material	Insert Material	Qualification	Orientation	Contact Finish - Mating	Shell Finish	Voltage Rating	Grade	Current Rating	Ingress Protection	Primary Material	Shell Material	Shielding	Number of Positions	Color	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Mounting Type	Mounting Feature	Connector Type	Termination	Operating Temperature (Max)	Operating Temperature (Min)

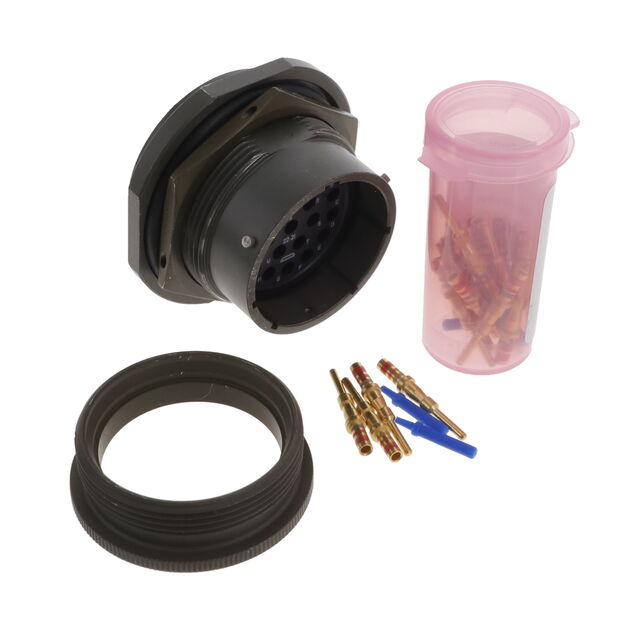

Amphenol Aerospace Operations MS3124E22-21P	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	MIL-DTL-26482 Series I	N (Normal)	Gold	Cadmium Olive Drab Chromate	1000 V	Military	13 A	Environment Resistant	Metal	Aluminum	Unshielded	21	Olive Drab	21 mm	22 mm	Bayonet Lock	Panel Mount	Bulkhead Front Side Nut	Male Pins Receptacle	Crimp	125 °C	-55 °C
Amphenol Aerospace Operations MS3124E22-41S
Amphenol Aerospace Operations MS3124E22-41P
Amphenol Aerospace Operations MS3124E22-21S(LC)
Amphenol Aerospace Operations MS3124E22-55S(LC)
Amphenol Aerospace Operations MS3124E22-21S
Amphenol Aerospace Operations MS3124E22-55P
Amphenol Aerospace Operations MS3124E22-21P(LC)
