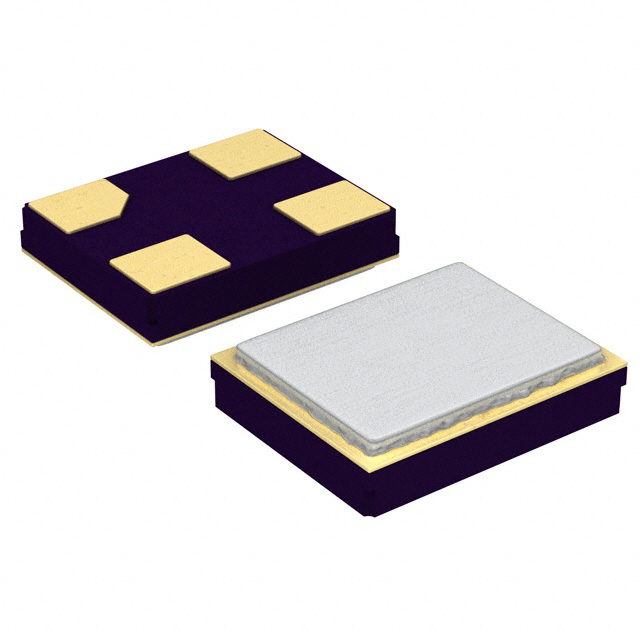

ABM11 Series

Catalog

CRYSTALS XTAL 2016 4-SMD 20MHZ TOL +/-15PPM STAB +/-15PPM -20°C ~ 70°C 10PF 120 OHMS

Part	Type	Frequency	Package / Case	Frequency Stability	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Operating Mode	Load Capacitance	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max)	Supplier Device Package
Abracon LLC ABM11-20.000MHZ-B7G-T	MHz Crystal	20 MHz	4-SMD No Lead	15 ppm	1.6	2	4-SMD	Fundamental	10 pF	15 ppm	-20 ░C	70 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm
Abracon LLC ABM11-38.400MHZ-12-B1U-T	MHz Crystal	38.4 MHz	4-SMD No Lead	10 ppm	1.6	2	4-SMD	Fundamental	12 pF	10 ppm	-20 ░C	70 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm	60 Ohms
Abracon LLC ABM11-48.000MHZ-B7G-T	MHz Crystal	48 MHz	4-SMD No Lead	15 ppm	1.6	2	4-SMD	Fundamental	10 pF	15 ppm	-20 ░C	70 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm	60 Ohms
Abracon LLC ABM11-32.000MHZ-8-R60-B1U-T	MHz Crystal	32 MHz	4-SMD No Lead	10 ppm	1.65	2.05		Fundamental	8 pF	10 ppm	-20 ░C	70 °C	Surface Mount			1.65 mm	0.081 in	0.065 in	2.05 mm	60 Ohms	0.02 in	0.5 mm	4-SMD
Abracon LLC ABM11-30.000MHZ-D2X-T3	MHz Crystal	30 MHz	4-SMD No Lead	20 ppm	1.6	2	4-SMD	Fundamental	10 pF	20 ppm	-40 C	85 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm	80 Ohm
Abracon LLC ABM11-28.63636MHZ-D2X-T3	MHz Crystal	28.63636 MHz	4-SMD No Lead	20 ppm	1.6	2	4-SMD	Fundamental	10 pF	20 ppm	-40 C	85 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm	100 Ohms
Abracon LLC ABM11-24.000MHZ-D2X-T3	MHz Crystal	24 MHz	4-SMD No Lead	20 ppm	1.6	2	4-SMD	Fundamental	10 pF	20 ppm	-40 C	85 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm	100 Ohms
Abracon LLC ABM11-25.000MHZ-D7X-T	MHz Crystal	25 MHz	4-SMD No Lead	20 ppm	1.6	2	4-SMD	Fundamental	10 pF	15 ppm	-40 C	85 °C	Surface Mount	0.59 mm	0.023 in	1.6 mm	0.079 in	0.063 "	2 mm	100 Ohms
