Varioface Series

Catalog

VARIOFACE MODULE, WITH SCREW CONNECTION AND D-SUBMINIATURE PIN STRIP

Part	Control Side Connection	Process Side Connection	Voltage - Rated	Positions / Poles	Length	Length	Wire Gauge [Max]	Wire Gauge [Min]	Control Side Cable Retainer	Width	Width	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Per Contact)	Length [x]	Length [x]	For Use With/Related Products	Accessory Type	Width [x]	Width [x]	Positions / Poles [custom]	Features

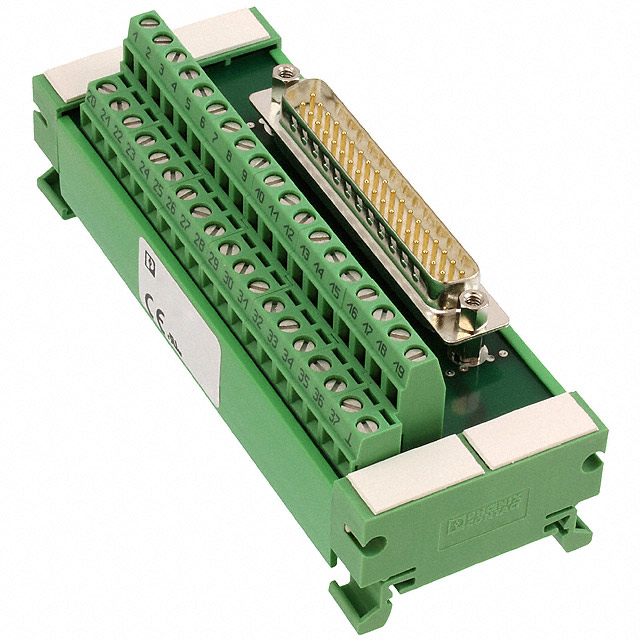

Phoenix Contact 2962803	D-Sub Male	Terminal Blocks - Screw Connection	125 V	37	4.764 in	121.01 mm	26 AWG	16 AWG	Jackscrew Socket	1.772 in	45 mm	-20 ░C	50 °C	2.5 A

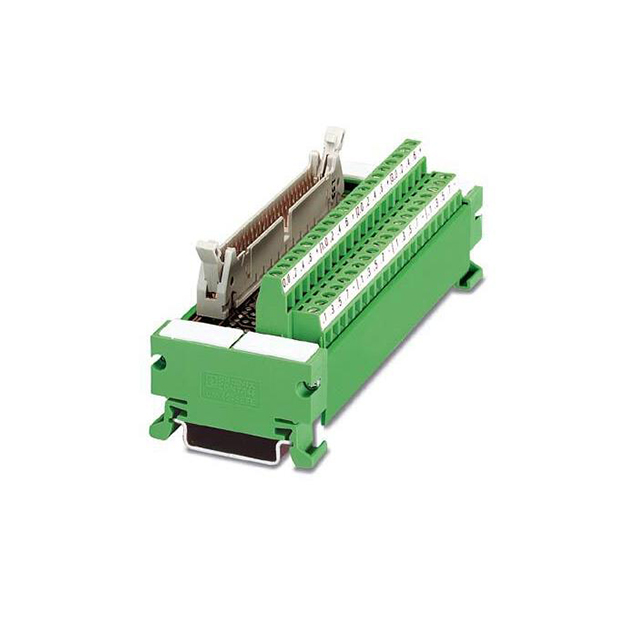

Phoenix Contact 2962489	Rectangular Male	Terminal Blocks - Screw Connection	60 VDC	50			26 AWG	14 AWG	Latches	1.772 in	45 mm	-20 ░C	50 °C	1 A	4.961 in	126 mm
Phoenix Contact 2302382																	Varioface Series	Terminal Block
Phoenix Contact 2962751	D-Sub Female	Terminal Blocks - Screw Connection	125 V	37	4.764 in	121.01 mm	26 AWG	16 AWG	Jackscrew Socket	1.772 in	45 mm	-20 ░C	50 °C	2.5 A

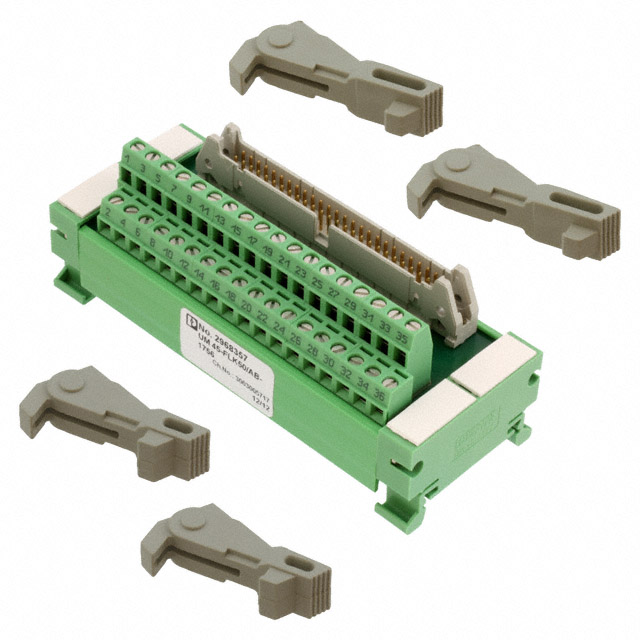

Phoenix Contact 2968357	Rectangular Male	Terminal Blocks - Screw Connection	60 VDC	50	4.567 in	116 mm	26 AWG	14 AWG	Latches	1.772 in	45 mm	-20 ░C	50 °C	1 A

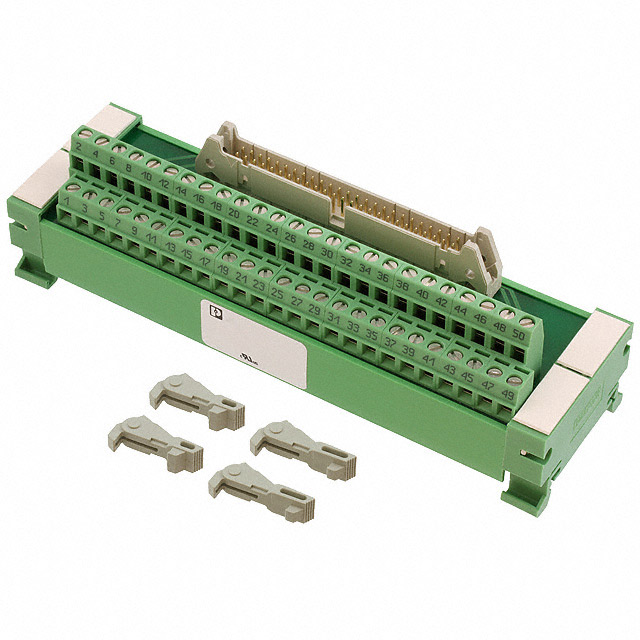

Phoenix Contact 2962612	Rectangular Male	Terminal Blocks - Screw Connection	25 VAC 60 VDC	50	5.945 in	151 mm	26 AWG	16 AWG	Latches	1.772 in	45 mm	-20 ░C	50 °C	1 A
Phoenix Contact 2900682	RJ45 Jack	Terminal Blocks - Spring Connection	48 VDC		0.984 in	24.99 mm	24 AWG	16 AWG				-20 ░C	50 °C	1 A					3.583 in	91.01 mm	8
Phoenix Contact 2305046	Rectangular Male	Terminal Blocks - Screw Connection		50			24 AWG	12 AWG	Latches			-20 ░C	50 °C		7.126 in	181 mm			4.961 "	126.01 mm		Label Holder LED Switches
