AON692 Series

Catalog

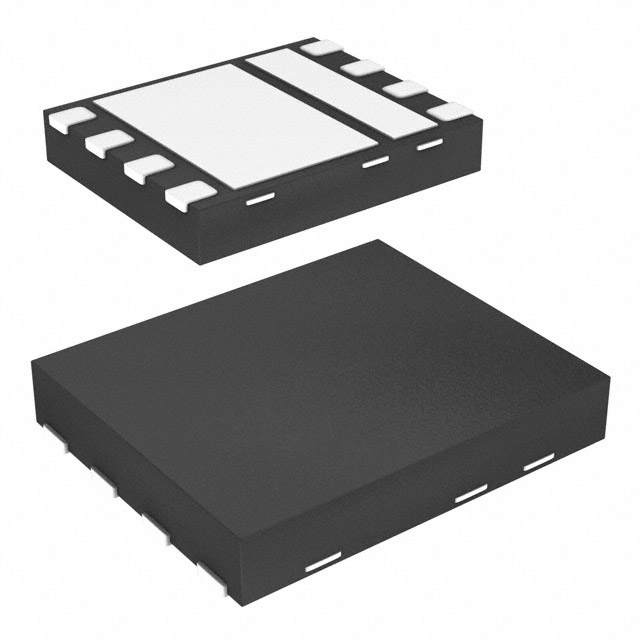

MOSFET 2N-CH 30V 17A/30A 8DFN

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Vgs(th) (Max) @ Id	Configuration	Technology	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Rds On (Max) @ Id, Vgs	Power - Max	FET Feature	Input Capacitance (Ciss) (Max) @ Vds	Input Capacitance (Ciss) (Max) @ Vds [Max]
Alpha & Omega Semiconductor Inc. AON6928	24 nC	8-PowerVDFN	2.5 V	2 N-Channel (Dual) Asymmetrical	MOSFET (Metal Oxide)	17 A 30 A	30 V	150 °C	-55 °C	8-DFN (5x6)	Surface Mount	8.2 mOhm	3.6 W 4.3 W	Logic Level Gate	1150 pF
Alpha & Omega Semiconductor Inc. AON6926	24 nC	8-PowerVDFN	2.5 V	2 N-Channel (Dual) Asymmetrical	MOSFET (Metal Oxide)	11 A 12 A	30 V	150 °C	-55 °C	8-DFN (5x6)	Surface Mount	11 mOhm	1.9 W 2.1 W	Logic Level Gate		1380 pF
Alpha & Omega Semiconductor Inc. AON6924	21 nC	8-WDFN Exposed Pad	2.3 V	2 N-Channel (Dual) Asymmetrical	MOSFET (Metal Oxide)	15 A 28 A	30 V	150 °C	-55 °C		Surface Mount	5.2 mOhm	2 W 2.2 W	Logic Level Gate		1560 pF
