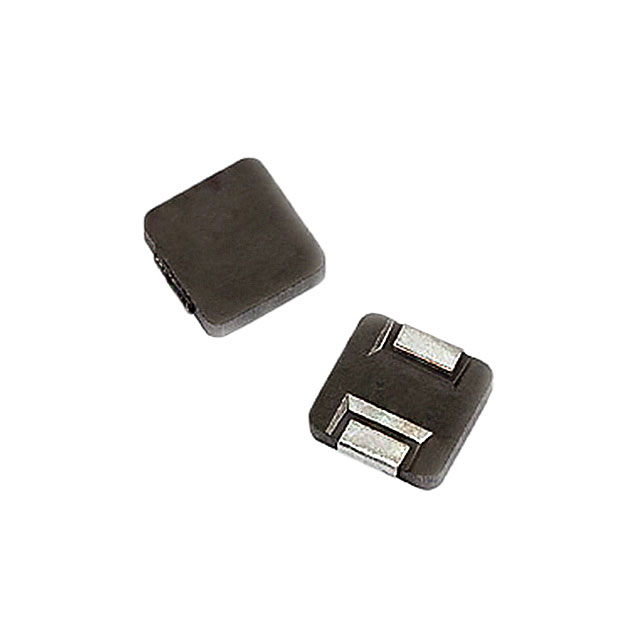

MPI20-V1 Series
Power Inductors - SMD IND MP 0.47uH 4.5A 2 PADS SMT
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD IND MP 0.47uH 4.5A 2 PADS SMT
Beta
⌘K
Power Inductors - SMD IND MP 0.47uH 4.5A 2 PADS SMT
Power Inductors - SMD IND MP 0.47uH 4.5A 2 PADS SMT
Power Inductors - SMD IND MP 0.47uH 4.5A 2 PADS SMT
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Frequency - Self Resonant | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Type | Inductance | Inductance Frequency - Test | Package / Case | Supplier Device Package | Current - Saturation (Isat) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 65 MHz | Shielded | 0.039 in | 1 mm | 20 % | 125 °C | -40 C | 2.2 A | Surface Mount | 2.2 µH | 1 MHz | 0806 (2016 Metric) | 2010 | 2.6 A | 135 mOhm |
Eaton - Electronics Division | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 160 MHz | Shielded | 0.039 in | 1 mm | 20 % | 125 °C | -40 C | 4.5 A | Surface Mount | 470 nH | 1 MHz | 0806 (2016 Metric) | 2010 | 5.5 A | 31 mOhm |
 Eaton - Electronics Division | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 85 MHz | Shielded | 0.039 in | 1 mm | 20 % | 125 °C | -40 C | 2.4 A | Surface Mount | 1.5 µH | 1 MHz | 0806 (2016 Metric) | 2010 | 3.2 A |
