833-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 16POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Color	Contact Finish	Termination	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Gender	Contact Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features	Termination Rows	Number of Rows

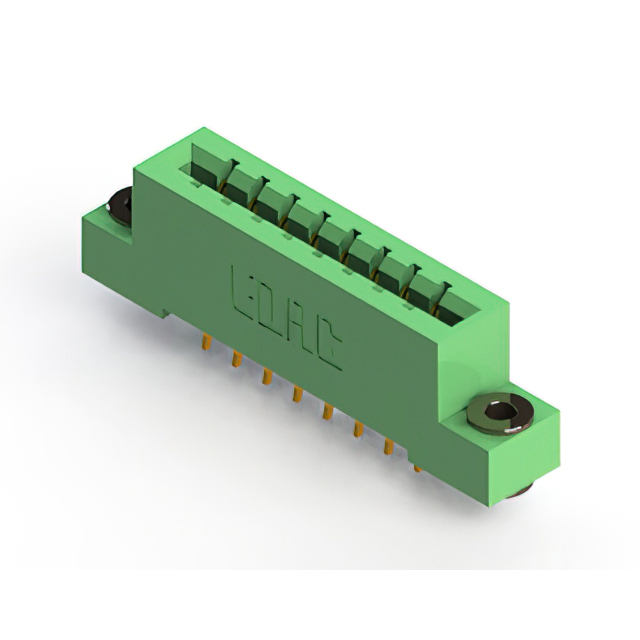

EDAC Inc. 833-016-556-203	Diallyl Phthalate (DAP)	2	8	Green	Gold	Solder	2	Board Edge Straddle Mount	0.25 Ám	10 Áin	Non Specified - Dual Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Card Extender
EDAC Inc. 833-016-541-102	Diallyl Phthalate (DAP)		16	Green	Gold	Wire Wrap		Through Hole	0.25 Ám	10 Áin	Non Specified - Single Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm		1	1

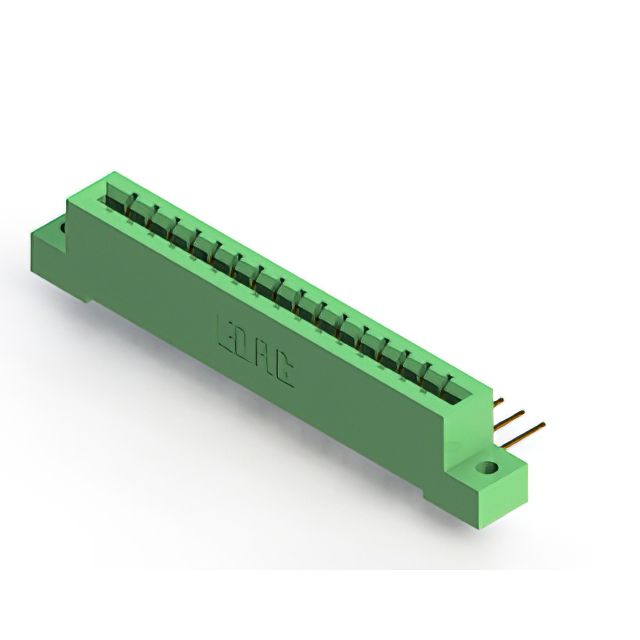

EDAC Inc. 833-016-559-102	Diallyl Phthalate (DAP)		16	Green	Gold	Solder		Right Angle Through Hole	0.25 Ám	10 Áin	Non Specified - Single Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm		1	1

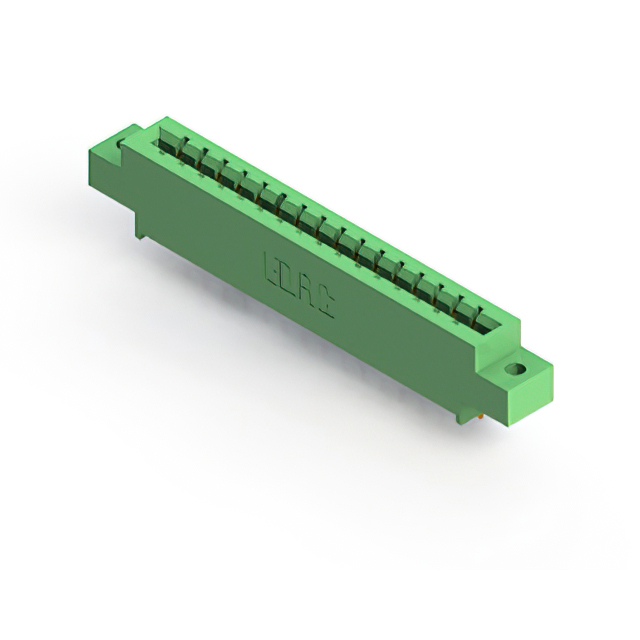

EDAC Inc. 833-016-542-602	Diallyl Phthalate (DAP)		16	Green	Gold	Wire Wrap		Through Hole	0.25 Ám	10 Áin	Non Specified - Single Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.128 "		3.25 mm		1	1

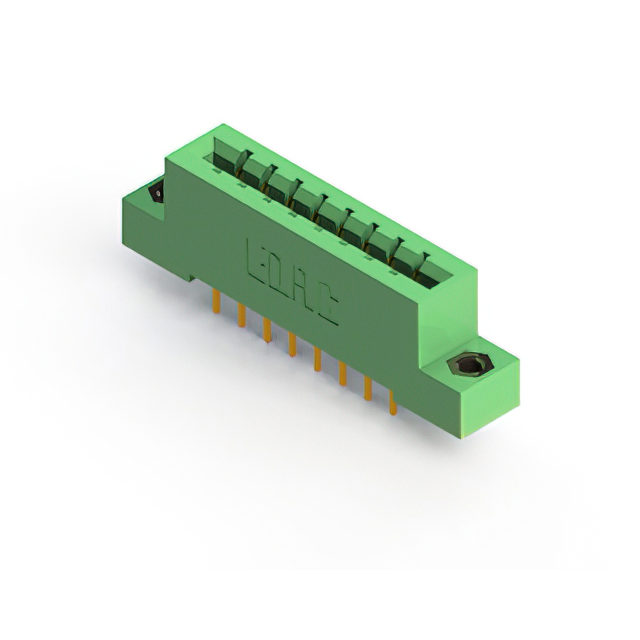

EDAC Inc. 833-016-540-207	Diallyl Phthalate (DAP)	2	8	Green	Gold	Wire Wrap	2	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C		Flush Mount M3 Threaded Insert Top Opening

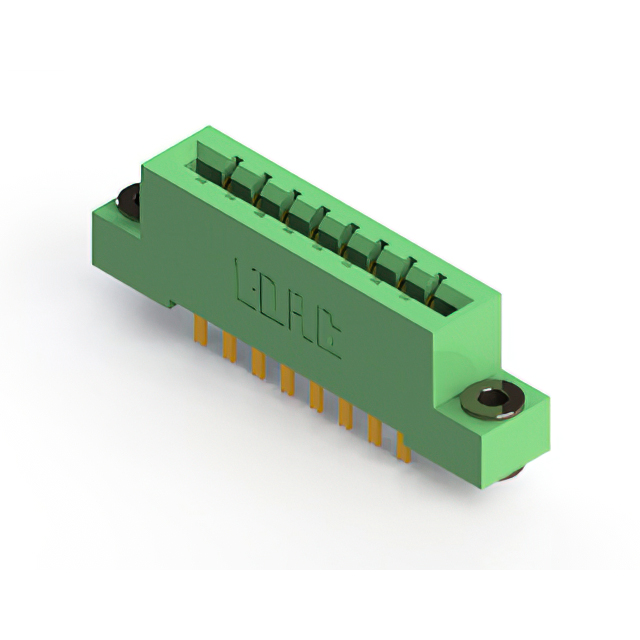

EDAC Inc. 833-016-500-203	Diallyl Phthalate (DAP)	2	8	Green	Gold	Solder Eyelet(s)	2	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.116 "	Floating Bobbin Flush Mount	2.95 mm

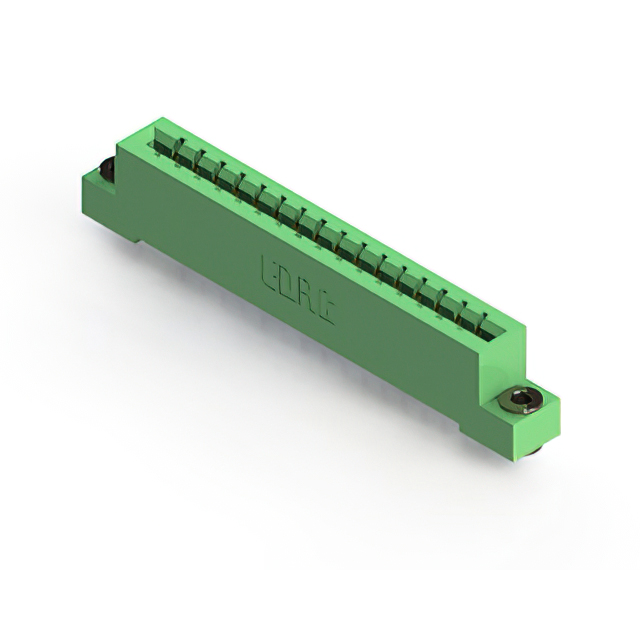

EDAC Inc. 833-016-540-103	Diallyl Phthalate (DAP)		16	Green	Gold	Wire Wrap		Through Hole	0.25 Ám	10 Áin	Non Specified - Single Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.116 "	Floating Bobbin Flush Mount	2.95 mm		1	1

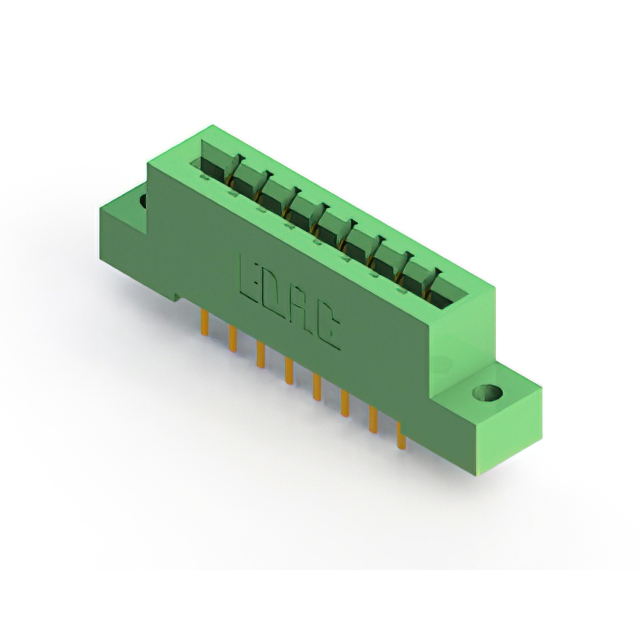

EDAC Inc. 833-016-520-202	Diallyl Phthalate (DAP)	2	8	Green	Gold	Solder	2	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm

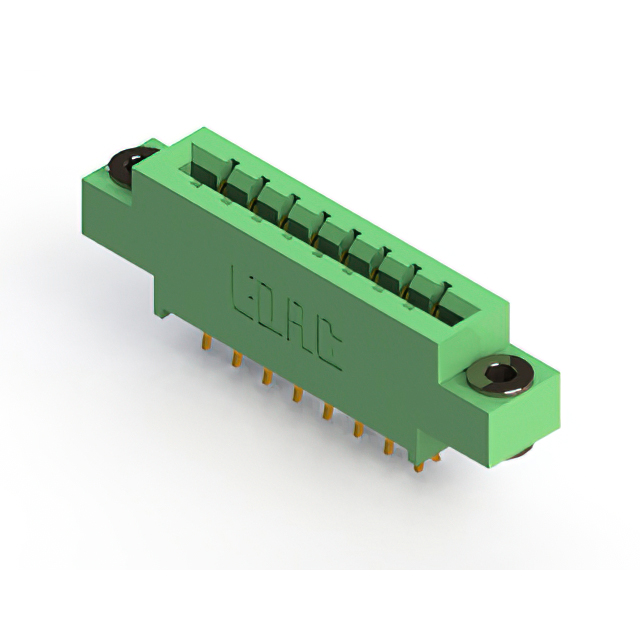

EDAC Inc. 833-016-556-803	Diallyl Phthalate (DAP)	2	8	Green	Gold	Solder	2	Board Edge Straddle Mount	0.25 Ám	10 Áin	Non Specified - Dual Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	Card Extender

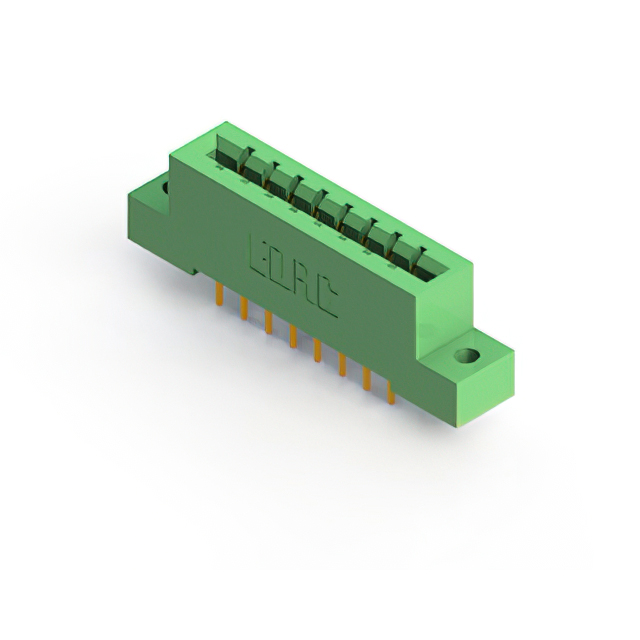

EDAC Inc. 833-016-542-202	Diallyl Phthalate (DAP)	2	8	Green	Gold	Wire Wrap	2	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	16	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	Female	Copper Alloy	Cantilever	125 °C	-40 C	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
