5962-8971001 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

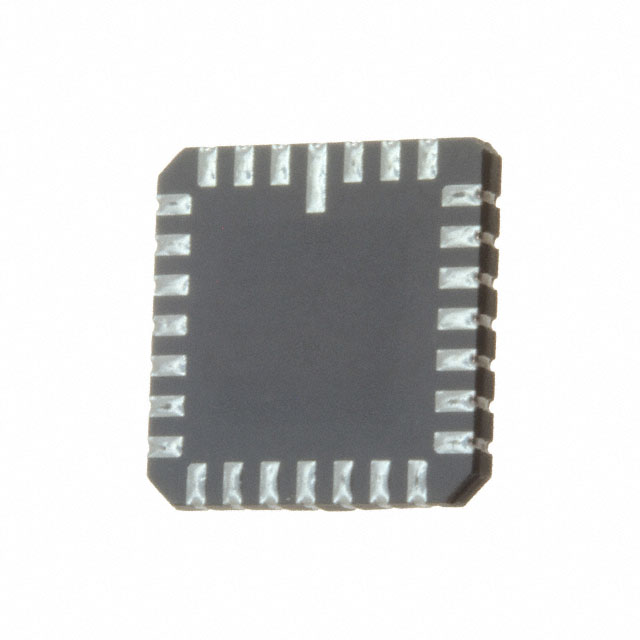

MULTIPLEXER, ANALOG, 16:1, 1 CIRCUIT, 700 OHM, 10.8 TO 16.5 V, -55 TO 125 DEG C, LCC-28
| Part | Multiplexer/Demultiplexer Circuit | Current - Leakage (IS(off)) (Max) [Max] | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | Switch Circuit | Operating Temperature [Min] | Operating Temperature [Max] | On-State Resistance (Max) [Max] | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Number of Circuits | Package / Case | Package / Case | Package / Case | Mounting Type | Charge Injection | Voltage - Supply, Single (V+) [Min] | Voltage - Supply, Single (V+) [Max] | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Dual (V±) [Min] | Voltage - Supply, Dual (V±) [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 16:1 | 1 nA | 5 pF | 44 pF | SP16T | -55 C | 125 °C | 450 Ohm | 300 ns | 300 ns | 1 | 15.24 mm | 28-CDIP | 0.6 in | Through Hole | 4 pC | 10.8 V | 16.5 V | 22.5 Ohm | -10.8 V | 16.5 V | 28-CDIP |
