9507-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

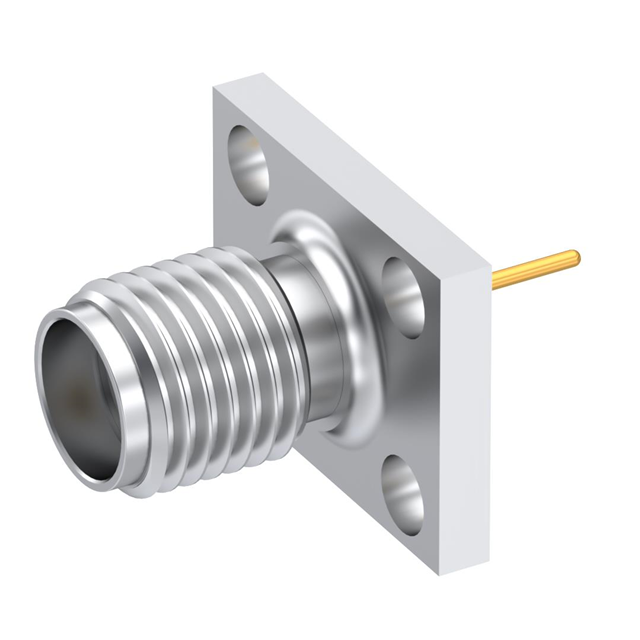

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Shield Termination | Housing Color | Fastening Type | Connector Style | Contact Termination | Frequency - Max [Max] | Connector Type | Center Contact Material | Number of Ports | Impedance | Mounting Feature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 250 °C | Gold | 335 V | Solder | Silver | Threaded | SMA | Solder | 26 GHz | Female Socket Jack | Beryllium Copper | 1 | 50 Ohms | Flange | Panel Mount |
