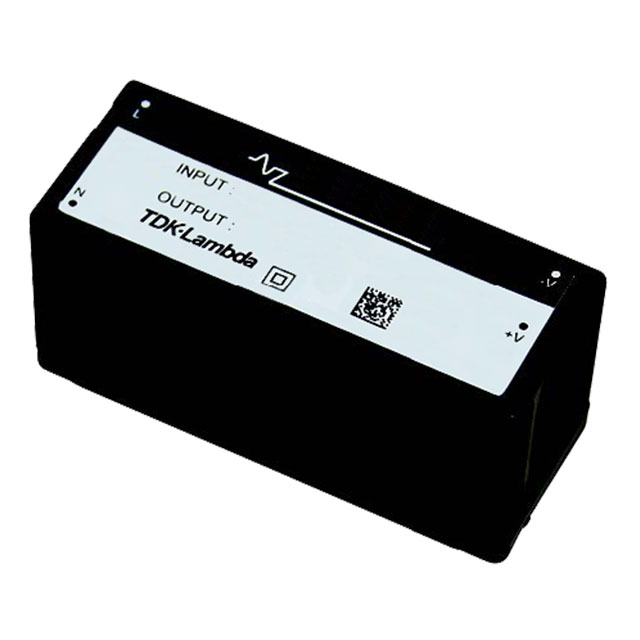

KWS25A Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC CONVERTER 5V 25W
| Part | Load Regulation | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) | Voltage - Output 1 | Features | Approval Agency | Package / Case | Power (Watts) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Applications | Line Regulation | Efficiency | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 20 mV | 1 | 1 " | 25.4 mm | 29 mm | 63.5 mm | 2.5 " | 1.14 in | 85 VAC 120 VDC | 265 VAC 370 VDC | 5 A | 5 V | Universal Input | CE | 4-DIP Module | 25 W | Through Hole | 85 °C | -10 °C | Enclosed | ITE (Commercial) | |||
TDK Corporation | 48 mV | 1 | 1 " | 25.4 mm | 29 mm | 63.5 mm | 2.5 " | 1.14 in | 85 VAC 120 VDC | 265 VAC 370 VDC | 12 V | Universal Input | CE | 4-DIP Module | 25 W | Through Hole | 85 °C | -10 °C | Enclosed | ITE (Commercial) | 96 mV | 86 % | 2.2 A |
