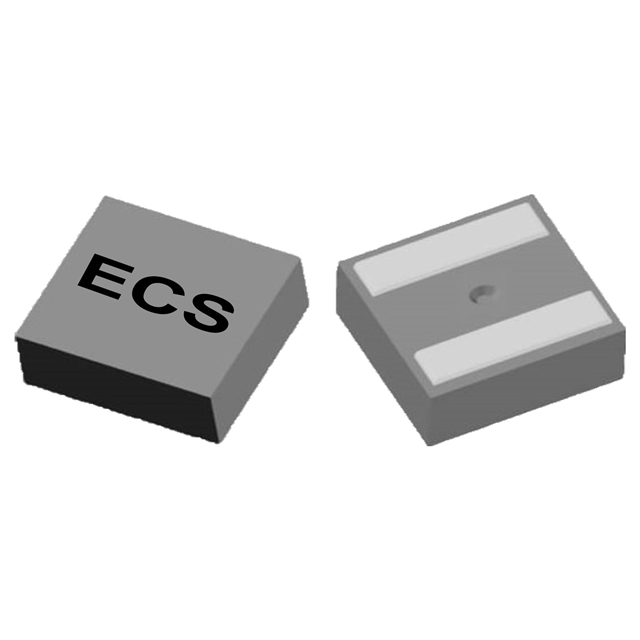

ECS-HCMPI Series
Manufacturer: ECS Inc.
Beta
⌘K
POWER INDUCTORS - SMD 0.15UH 22.2A FIXED IND 2.31MOHM
| Part | Tolerance | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Ratings | Current - Saturation (Isat) | Current Rating (Amps) | DC Resistance (DCR) [Max] | Shielding | Mounting Type | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Inductance | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 20 % | Nonstandard | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | AEC-Q200 | 32.5 A | 22.2 A | 2.31 mOhm | Shielded | Surface Mount | Molded | 0.122 in | 3.1 mm | 125 °C | -40 C | 5030 | 150 nH | 100 kHz |
