QM48T14120 Series

Catalog

DC DC CONVERTER 12V 168W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Control Features	Applications	Power (Watts)	Features	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Package / Case
Bel Fuse Inc. QM48T14120-NDB0G	85 °C	-40 C	92 %	Through Hole	Isolated Module	12 V	36 V	75 V	Active Low Enable	ITE (Commercial)	168 W	OCP OTP OVP Remote On/Off SCP UVLO	1	14 A	2.3 in	36.8 mm	1.45 in	10.7 mm	58.4 mm	0.42 "	2000 V	8-DIP Module 1/4 Brick

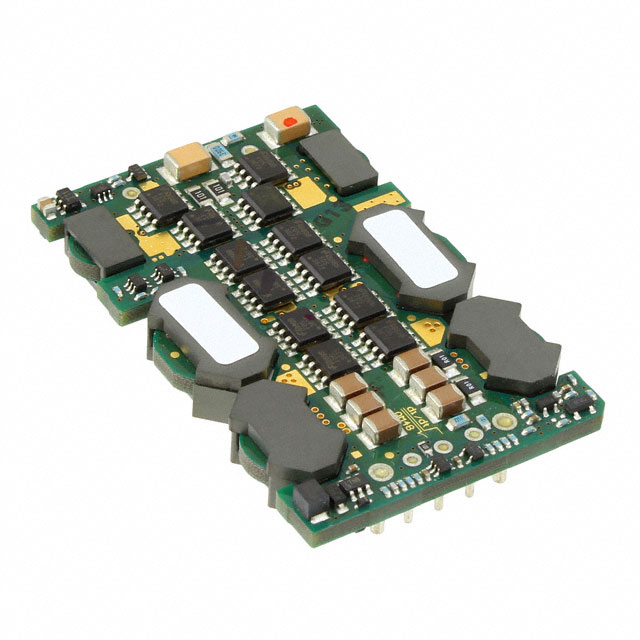

Bel Fuse Inc. QM48T14120-NAB0G	85 °C	-40 C	92 %	Through Hole	Intermediate Bus Converter	12 V	36 V	75 V	Active Low Enable	ITE (Commercial)	168 W	OCP OTP OVP Remote On/Off UVLO	1	14 A	2.3 in	36.8 mm	1.45 in	8.3 mm	58.4 mm	0.33 in	2000 V	8-DIP Module 1/4 Brick
Bel Fuse Inc. QM48T14120-PAA0	85 °C	-40 C	92 %	Through Hole	Intermediate Bus Converter	12 V	36 V	75 V	Active High Enable	ITE (Commercial)	168 W	OCP OTP OVP Remote On/Off UVLO	1	14 A	2.28 "	36.8 mm	1.45 in	8.3 mm	57.9 mm	0.33 in	2000 V	8-DIP Module 1/4 Brick
Bel Fuse Inc. QM48T14120-NAB0	85 °C	-40 C	92 %	Through Hole	Intermediate Bus Converter	12 V	36 V	75 V	Active Low Enable	ITE (Commercial)	168 W	OCP OTP OVP Remote On/Off UVLO	1	14 A	2.28 "	36.8 mm	1.45 in	8.3 mm	57.9 mm	0.33 in	2000 V	8-DIP Module 1/4 Brick
Bel Fuse Inc. QM48T14120-NDA0G	85 °C	-40 C	92 %	Through Hole	Isolated Module	12 V	36 V	75 V	Active Low Enable	ITE (Commercial)	168 W	OCP OTP OVP Remote On/Off SCP UVLO	1	14 A	2.3 in	36.8 mm	1.45 in	10.7 mm	58.4 mm	0.42 "	2000 V	8-DIP Module 1/4 Brick
