HLMP-1503 Series

Catalog

LED CBI 3MM GREEN RA HSG

Part	Voltage Rating	Color	Viewing Angle	Lens Style	Lens Type	Lens Size	Lens Size	Current	Wavelength - Peak	Configuration	Millicandela Rating	Mounting Type	Lens Color	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Transparency	Current - Test	Height (Max) [Max] [z]	Supplier Device Package

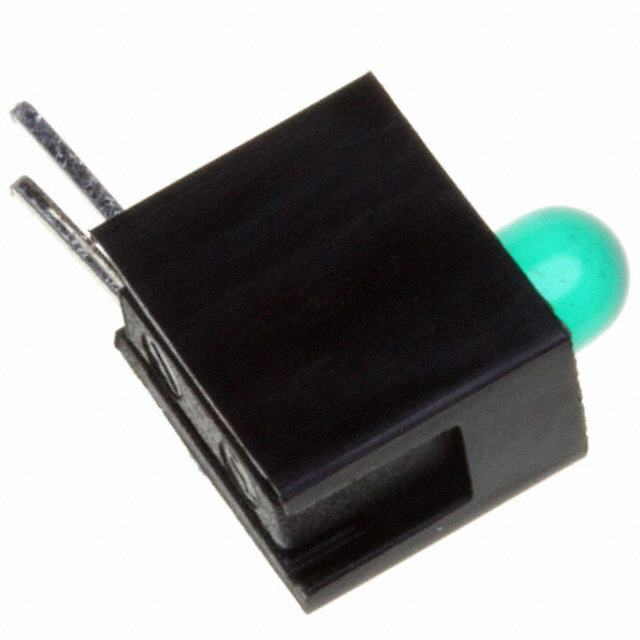

Broadcom Limited HLMP-1503-C00A2	2.1 V	Green	60 °	Round with Domed Top	Diffused Tinted	3 mm	T-1	10 mA	565 nm	Single	2.6 mcd	Through Hole Right Angle

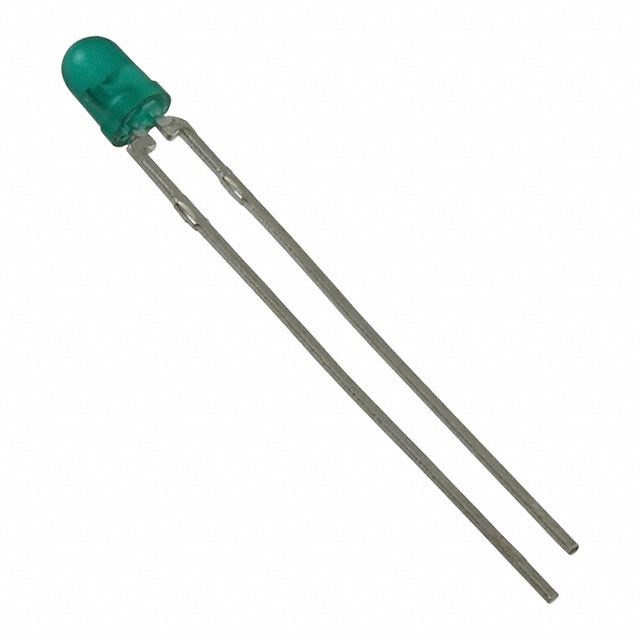

Broadcom Limited HLMP-1503-D0002		Green	60 °	Round with Domed Top		3 mm	T-1		565 nm	Standard	4.2 mcd	Through Hole	Green	Radial	2.1 V	569 nm	Diffused	10 mA	6.35 mm	T-1 (3mm)

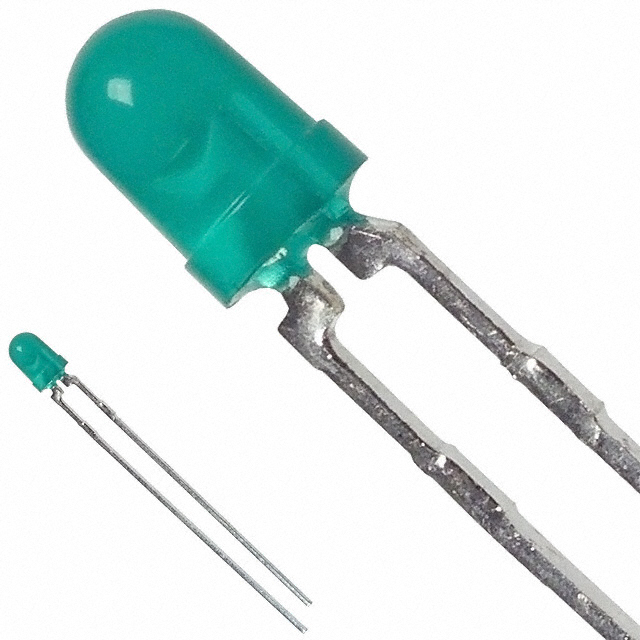

Broadcom Limited HLMP-1503		Green	60 °	Round with Domed Top		3 mm	T-1		565 nm	Standard	1 mcd	Through Hole	Green	Radial	2.1 V	569 nm	Diffused	10 mA	6.35 mm	T-1

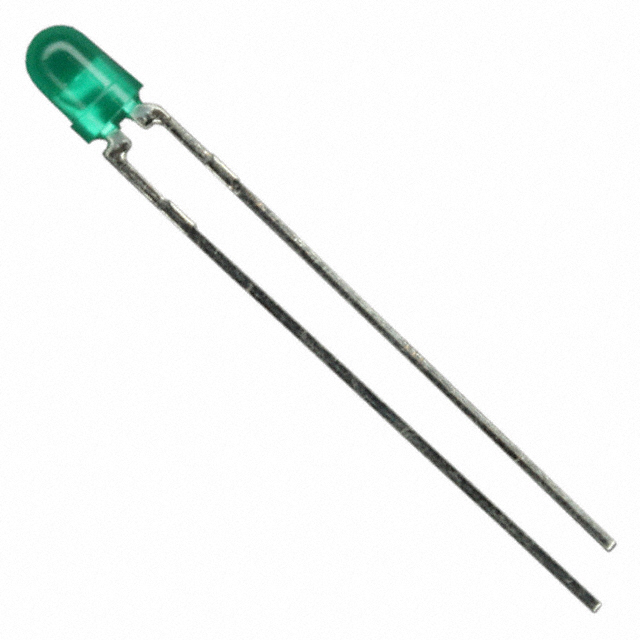

Broadcom Limited HLMP-1503-D0000		Green	60 °	Round with Domed Top		3 mm	T-1		565 nm	Standard	4.2 mcd	Through Hole	Green	Radial	2.1 V	569 nm	Diffused	10 mA	6.35 mm	T-1

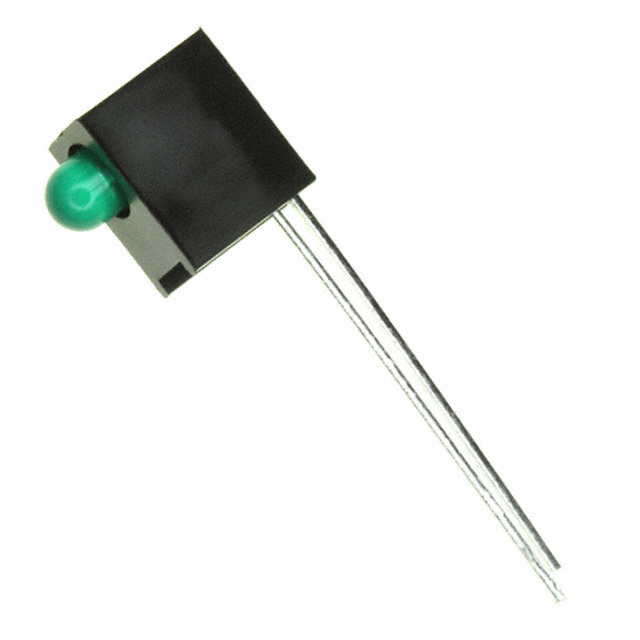

Broadcom Limited HLMP-1503-C00A1	2.1 V	Green	60 °	Round with Domed Top	Diffused Tinted	3 mm	T-1	10 mA	565 nm	Single	2.6 mcd	Through Hole Right Angle
