PEAMW12NA Series

Wall Mount Power Supply 24V 12 Watt

Manufacturer: TT Electronics/BI

Catalog

Wall Mount Power Supply 24V 12 Watt

Catalog

Wall Mount Power Supply 24V 12 Watt

Part	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Polarization	Voltage - Output	Power (Watts)	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Connector	Approval Agency	Efficiency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Standard Number	No Load Power Consumption	Form	Input Type	Cord Length	Cord Length
TT Electronics/BI PEAMW12NA-12-B1	264 VAC	90 VAC	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	Positive Center	12 V	12 W	1 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	CB CE cURus FCC TUV	Level VI	Medical	0 °C	60 °C	North America	60601-1	100 mW	Wall Mount	Fixed Blade	70.9 "	1.8 m
TT Electronics/BI PEAMW12NA-10-USB	264 VAC	90 VAC	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm		5 V	12 W	2.4 A	USB A Receptacle			NEMA 1-15P	CB CE cURus FCC TUV	Level VI	Medical	0 °C	60 °C	North America	60601-1	100 mW	Wall Mount	Fixed Blade

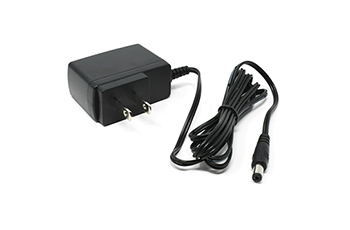

TT Electronics/BI PEAMW12NA-14-B1	264 VAC	90 VAC	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	Positive Center	24 V	12 W	500 mA	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	CB CE cURus FCC TUV	Level VI	Medical	0 °C	60 °C	North America	60601-1	100 mW	Wall Mount	Fixed Blade	70.9 "	1.8 m
TT Electronics/BI PEAMW12NA-10-B1	264 VAC	90 VAC	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	Positive Center	5 V	12 W	2.4 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	CB CE cURus FCC TUV	Level VI	Medical	0 °C	60 °C	North America	60601-1	100 mW	Wall Mount	Fixed Blade	70.9 "	1.8 m
TT Electronics/BI PEAMW12NA-13-B1	264 VAC	90 VAC	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	Positive Center	15 V	12 W	0.8 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	CB CE cURus FCC TUV	Level VI	Medical	0 °C	60 °C	North America	60601-1	100 mW	Wall Mount	Fixed Blade	70.9 "	1.8 m
