OSTTS02 Series

Catalog

TERM BLOCK PLUG 2POS 90DEG 7.5MM

Part	Torque - Screw	Torque - Screw	Housing Material	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Mounting Type	Voltage - UL	Pitch	Pitch	Termination Style	Positions Per Level	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛	Contact Mating Finish
On Shore Technology Inc. OSTTS02A15C	3.5 Lb-In	0.4 Nm	Brass	Brass	7 mm	6 mm	UL94 V-0	Free Hanging (In-Line)	300 V	0.295 in	7.5 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	12 AWG	24 AWG	1
On Shore Technology Inc. OSTTS02515C	3.5 Lb-In	0.4 Nm	Brass	Brass	7 mm	6 mm	UL94 V-0	Free Hanging (In-Line)	300 V	0.2 in	5.08 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	12 AWG	24 AWG	1	Green	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS02515A	3.5 Lb-In	0.4 Nm	Brass	Brass	7 mm	6 mm	UL94 V-0	Free Hanging (In-Line)	300 V	0.2 in	5.08 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	12 AWG	24 AWG	1	Green	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS02115A	1.7 Lb-In	0.2 Nm	Brass	Brass	7 mm	6 mm		Free Hanging (In-Line)	300 V	0.138 "	3.5 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	16 AWG	28 AWG	1	Green			1.5 mm²
On Shore Technology Inc. OSTTS02115B	1.7 Lb-In	0.2 Nm	Thermoplastic	Phosphor Bronze	7 mm	6 mm		Free Hanging (In-Line)	300 V	0.138 "	3.5 mm	Screw	2	Plug Female Sockets	-40 C	115 °C	2	16 AWG	28 AWG	1	Green			1.5 mm²	1.5 mm˛	Tin

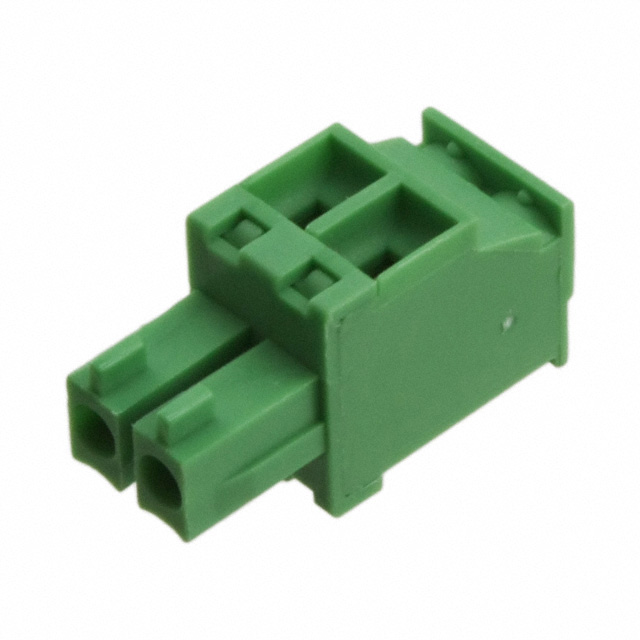

On Shore Technology Inc. OSTTS02315A	1.7 Lb-In	0.2 Nm	Brass	Brass	7 mm	6 mm		Free Hanging (In-Line)	300 V	0.15 in	3.81 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	16 AWG	28 AWG	1	Green			1.5 mm²
On Shore Technology Inc. OSTTS02A15B	3.5 Lb-In	0.4 Nm	Brass	Brass	7 mm	6 mm	UL94 V-0	Free Hanging (In-Line)	300 V	0.295 in	7.5 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	12 AWG	24 AWG	1
On Shore Technology Inc. OSTTS02315D	1.7 Lb-In	0.2 Nm	Brass	Brass	7 mm	6 mm	UL94 V-0	Free Hanging (In-Line)	300 V	0.15 in	3.81 mm	Screw	2	Plug Female Sockets	-30 ░C	105 ░C	2	16 AWG	28 AWG	1	Green			1.5 mm²

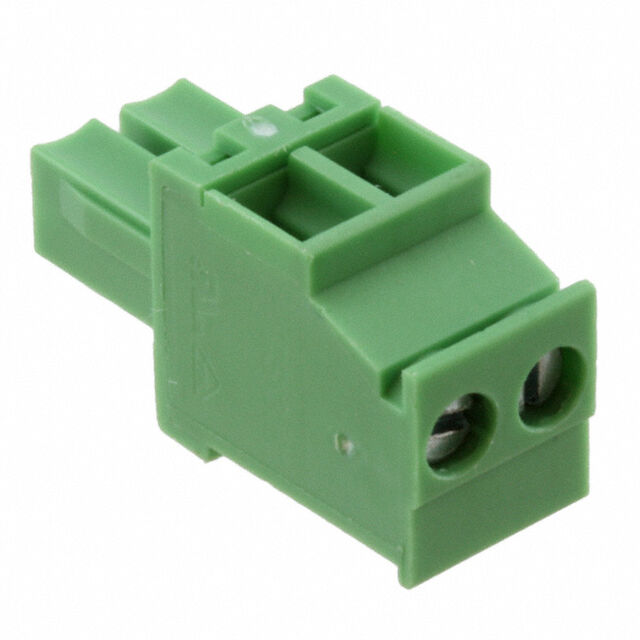

On Shore Technology Inc. OSTTS02315B	1.7 Lb-In	0.2 Nm	Brass	Brass	7 mm	6 mm		Free Hanging (In-Line)	300 V	0.15 in	3.81 mm	Screw	2	Plug Female Sockets	-40 C	115 °C	2	16 AWG	28 AWG	1	Green			1.5 mm²		Nickel
