9431-7083 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

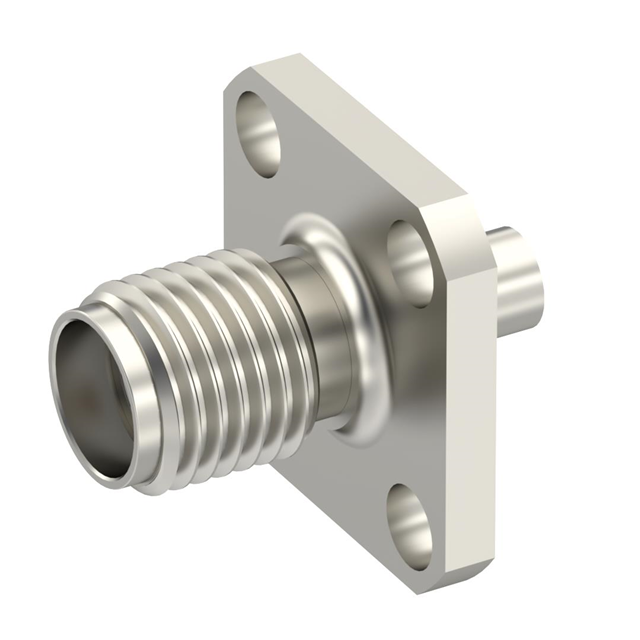

SMA / STRAIGHT JACK FEMALE SOLDE
| Part | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Housing Color | Frequency - Max [Max] | Impedance | Shield Termination | Cable Group | Mounting Feature | Connector Style | Connector Type | Contact Termination | Mounting Type | Center Contact Material | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Stainless Steel | Silver | 18 GHz | 50 Ohms | Solder | RG-405 (.086 Semi Rigid) | Flange | SMA | Female Socket Jack | Solder | Panel Mount | Beryllium Copper | Threaded | 1 |
