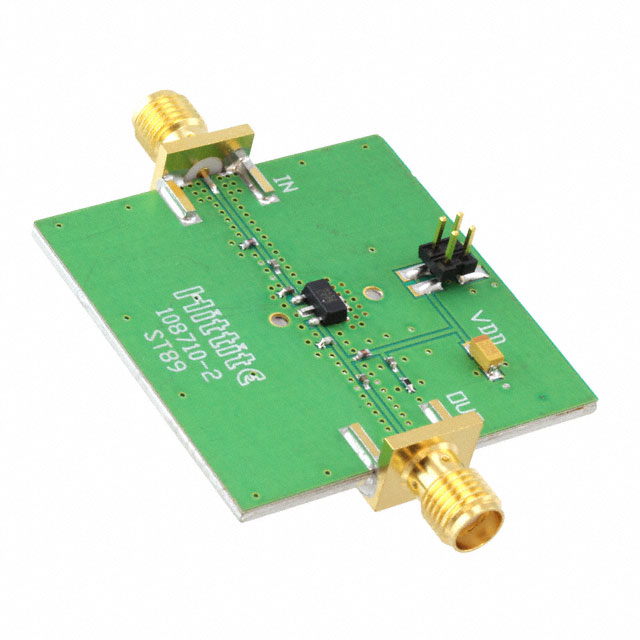

HMC452 Series
1 Watt Power Amplifier SMT, 0.4 - 2.2 GHz
Manufacturer: Analog Devices Inc./Maxim Integrated
Catalog
1 Watt Power Amplifier SMT, 0.4 - 2.2 GHz
Description
AI
The HMC452ST89(E) is a high dynamic range GaAs InGaP HBT 1 Watt MMIC power amplifier operating from 0.4 to 2.2 GHz and packaged in industry standard SOT89 packages. Utilizing a minimum number of external components and a single +5V supply, the amplifier output IP3 can be optimized to +45 dBm at 0.4 GHz or +49 dBm at 2.1 GHz. The high output IP3 and PAE make the HMC452ST89(E) ideal power amplifier for Cellular/ PCS/3G and Fixed Wireless applications.ApplicationsGSM, GPRS & EDGECDMA & W-CDMACATV/Cable ModemFixed Wireless
