929975 Series

Catalog

CONN RCPT 18POS 0.1 TIN-LEAD PCB

Part	Number of Rows [custom]	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Termination	Mounting Type	Contact Material	Voltage Rating	Fastening Type	Contact Shape	Insulation Color	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type
3M Electronic Specialty 929975-01-09	2	Tin-Lead	2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin-Lead	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	18	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-32-RK	2		2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	64	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle

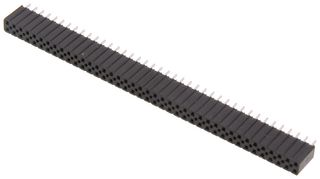

3M Electronic Specialty 929975-01-40-RK	2		2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	80	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-16	2	Tin-Lead	2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin-Lead	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black		UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-01	2	Tin-Lead	2 A	2.54 µm	100 µin			Tin-Lead	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	2	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-18	2	Tin-Lead	2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin-Lead	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	36	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-27-RK	2		2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	54	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-05	2	Tin-Lead	2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin-Lead	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	10	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-16-RK	2		2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black		UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
3M Electronic Specialty 929975-01-11	2	Tin-Lead	2 A	2.54 µm	100 µin	0.1 "	2.54 mm	Tin-Lead	0.325 in	8.25 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	0.125 in	3.18 mm	Solder	Through Hole	Copper Alloy	1500 V	Push-Pull	Square	Black	22	UL94 V-0	-40 C	105 ░C	Forked	100 çin	2.54 çm	Receptacle
