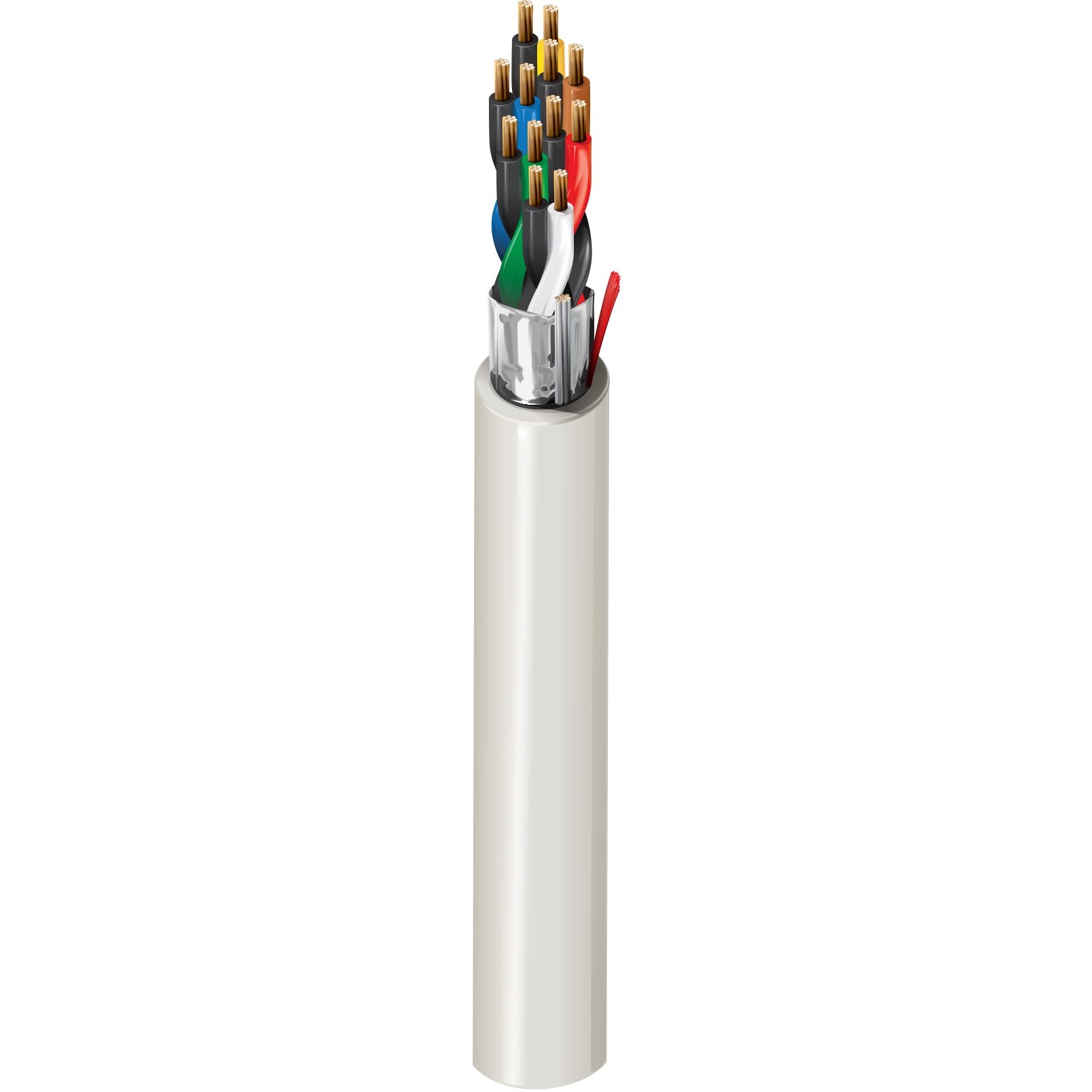

6545FE Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 12COND 22AWG
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Voltage | Length | Length | Conductor Insulation | Number of Conductors | Features | Conductor Material | Jacket Color | Ratings | Shield Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 6.81 mm | 0.268 in | Security Sound | Multi-Pair | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | 300 VDC | 304.8 m | 1000 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 12 | Drain Wire Rip Cord | Copper Bare | Natural | UL Style CMP | Foil | 22 AWG | 30 AWG | 7 | 75 ░C | 0 °C |
