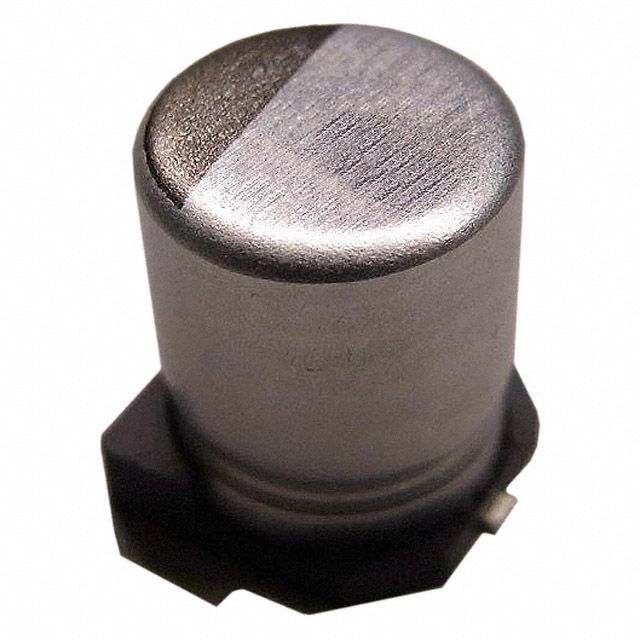

MHJ Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD

Part	Polarization	Voltage - Rated	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Ripple Current @ Low Frequency	Capacitance	Mounting Type	Lifetime @ Temp.	Package / Case	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]
Chemi-Con EMHJ160ARA471MJA0G	Polar	16 V	120 mOhm	0.394 in	10 mm	10.3 mm	0.406 in	AEC-Q200	220 mA	470 µF	Surface Mount	2000 Hrs	Radial Can - SMD	Automotive	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	100 kHz 550 mA	125 °C	-40 C
Chemi-Con EMHJ100ARA221MHA0G	Polar	10 V	150 mOhm	0.315 in	8 mm	10.3 mm	0.406 in	AEC-Q200	175 mA	220 µF	Surface Mount	2000 Hrs	Radial Can - SMD	Automotive	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	350 mA	125 °C	-40 C
Chemi-Con EMHJ100ARA331MHA0G	Polar	10 V	150 mOhm	0.315 in	8 mm	10.3 mm	0.406 in	AEC-Q200	175 mA	330 µF	Surface Mount	2000 Hrs	Radial Can - SMD	Automotive	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	350 mA	125 °C	-40 C
