1SP0635 Series

Catalog

IC GATE DRVR HI/LOW SIDE MODULE

Part	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration	Channel Type	Number of Drivers	Mounting Type	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	High Side Voltage - Max (Bootstrap) [Max]	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]

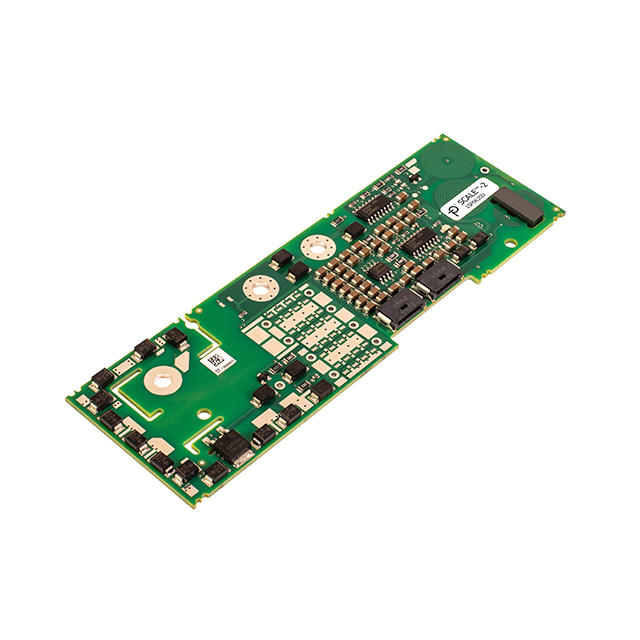

POWER INTEGRATIONS 1SP0635D2S1-17	35 A	35 A	High-Side or Low-Side	Single	1	Surface Mount	Module	9 ns	30 ns	1700 V	IGBT	85 C	-40 ¯C	Module	15.5 V	14.5 V

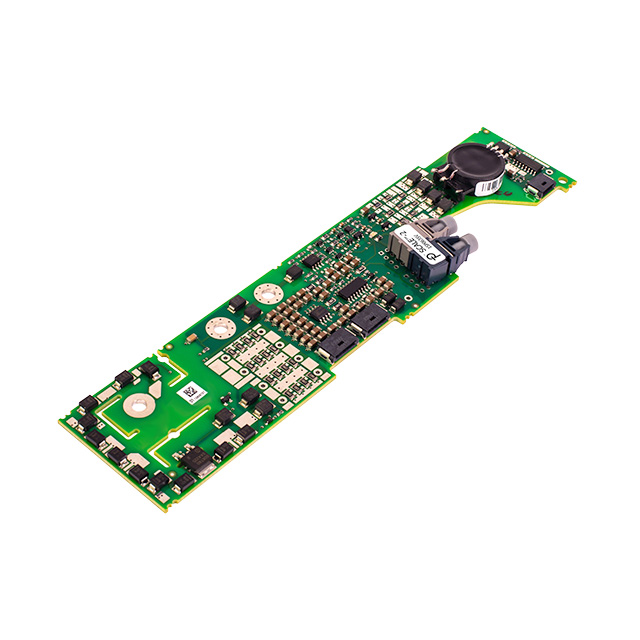

POWER INTEGRATIONS 1SP0635V2M1-5SNA1200E330100	35 A	35 A	High-Side or Low-Side	Single	1	Chassis Mount	Module	9 ns	30 ns		IGBT	85 C	-40 ¯C	Module	15.5 V	14.5 V
POWER INTEGRATIONS 1SP0635V2M1-17	35 A	35 A	High-Side or Low-Side	Single	1	Surface Mount	Module	9 ns	30 ns	1700 V	IGBT	85 C	-40 ¯C	Module	15.5 V	14.5 V
POWER INTEGRATIONS 1SP0635V2M1-25	35 A	35 A	High-Side or Low-Side	Single	1	Surface Mount	Module	9 ns	30 ns	2500 V	IGBT	85 C	-40 ¯C	Module	15.5 V	14.5 V
