7100.1109 Series

Catalog

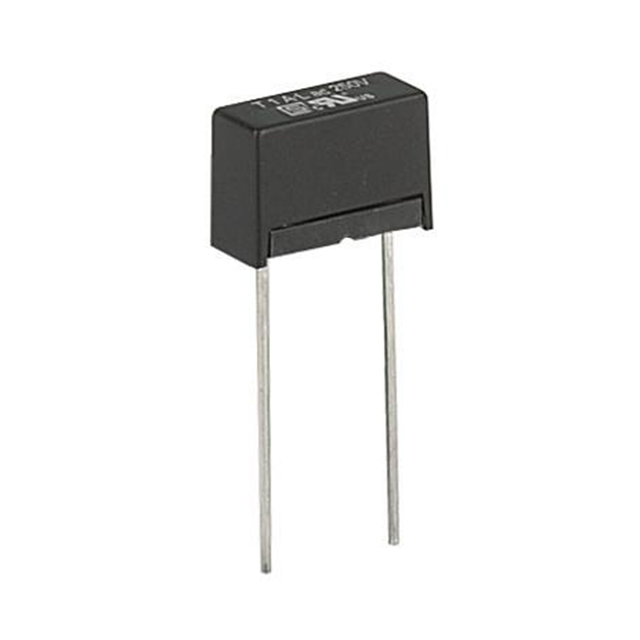

FUSE BOARD MNT 250MA 250VAC/VDC

Part	Melting I˛t	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Melting I²t	Package / Case	Voltage Rating - AC	Response Time	Voltage Rating - DC	Fuse Type
SCHURTER Inc. 7100.1109.13	0.2	0.25 A	35 A	Through Hole	5 mm	11.5 mm	0.197 "	8 mm	0.315 in	0.453 "	85 °C	-40 C	0.2	Box Radial	250 V	Slow Blow	250 V	Board Mount (Cartridge Style Excluded)
SCHURTER Inc. 7100.1109.96		0.25 A	35 A	Through Hole	5 mm	11.5 mm	0.197 "	8 mm	0.315 in	0.453 "	85 °C	-40 C	0.2	Box Radial	250 V	Slow Blow	250 V	Board Mount (Cartridge Style Excluded)
