CGS HCH Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HCH215 300W 220R 5% LEAD

Part	Tolerance	Mounting Feature	Operating Temperature	Power (Watts)	Package / Case	Composition	Size / Dimension [y]	Size / Dimension [x]	Coating, Housing Type	Features	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Lead Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]

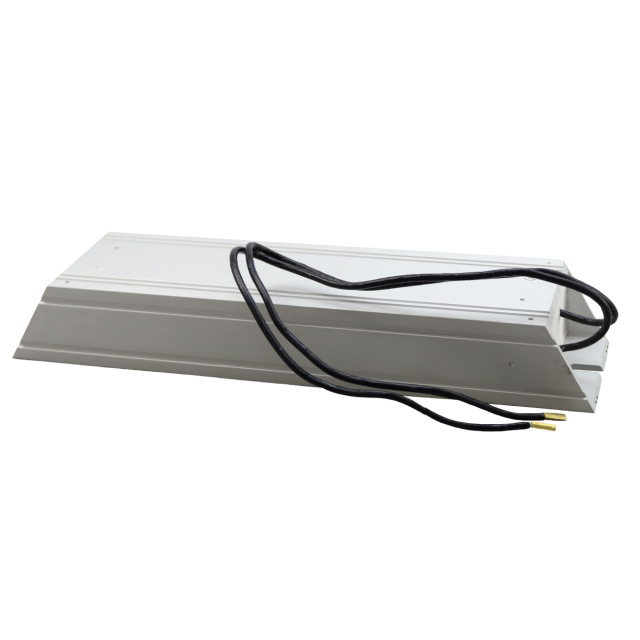

TE Connectivity AMP Connectors HCH215J220RJ	5 %	Flanges	330 °C	300 W	Rectangular Case	Wirewound	2.362 " 60 mm	8.465 " 215 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	220 Ohms	Wire Leads

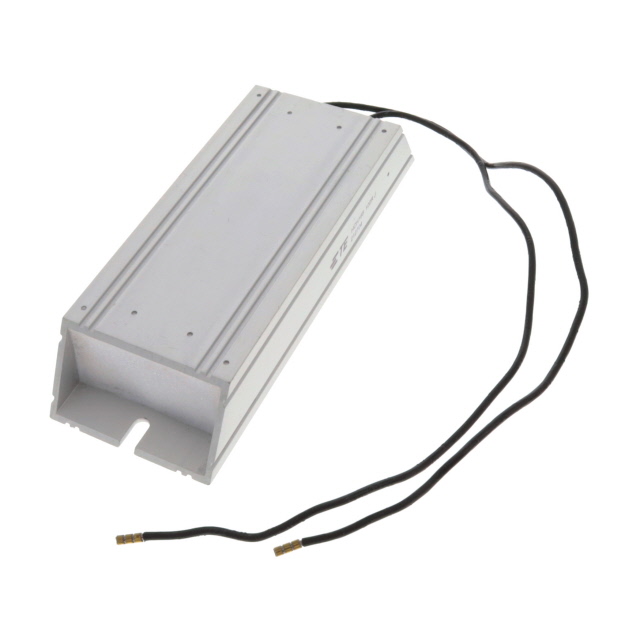

TE Connectivity AMP Connectors HCH165J100RJ	5 %	Flanges	320 °C	200 Watts	Rectangular Case	Wirewound		165 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	100 Ohms	Wire Leads	60 mm	6.496 "	2.362 in
TE Connectivity AMP Connectors HCH215J100RJ	5 %	Flanges	330 °C	300 W	Rectangular Case	Wirewound	2.362 " 60 mm	8.465 " 215 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	100 Ohms	Wire Leads

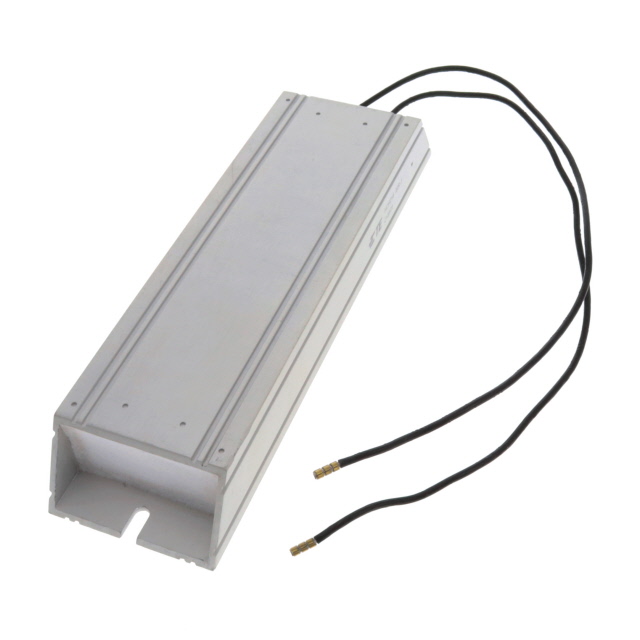

TE Connectivity AMP Connectors HCH215J22RJ	5 %	Flanges	330 °C	300 W	Rectangular Case	Wirewound	2.362 " 60 mm	8.465 " 215 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	22 Ohms	Wire Leads

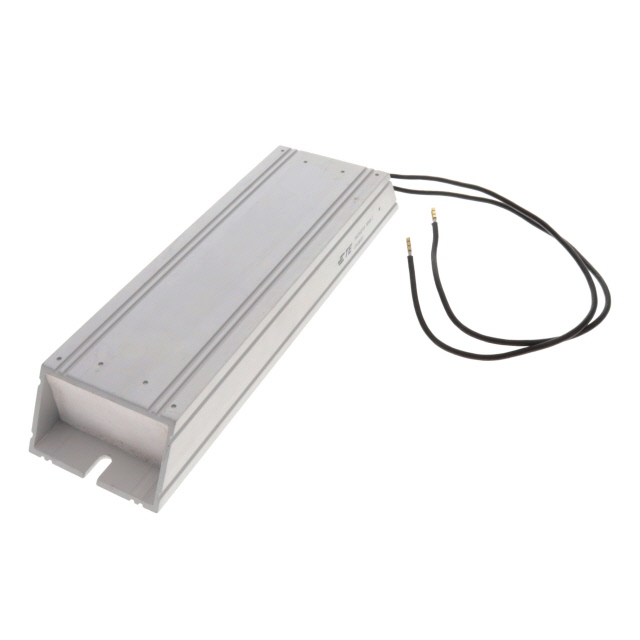

TE Connectivity AMP Connectors HCH215J6R8J	5 %	Flanges	330 °C	300 W	Rectangular Case	Wirewound	2.362 " 60 mm	8.465 " 215 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	6.8 Ohms	Wire Leads
TE Connectivity AMP Connectors HCH215J68RJ	5 %	Flanges	330 °C	300 W	Rectangular Case	Wirewound	2.362 " 60 mm	8.465 " 215 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	68 Ohms	Wire Leads

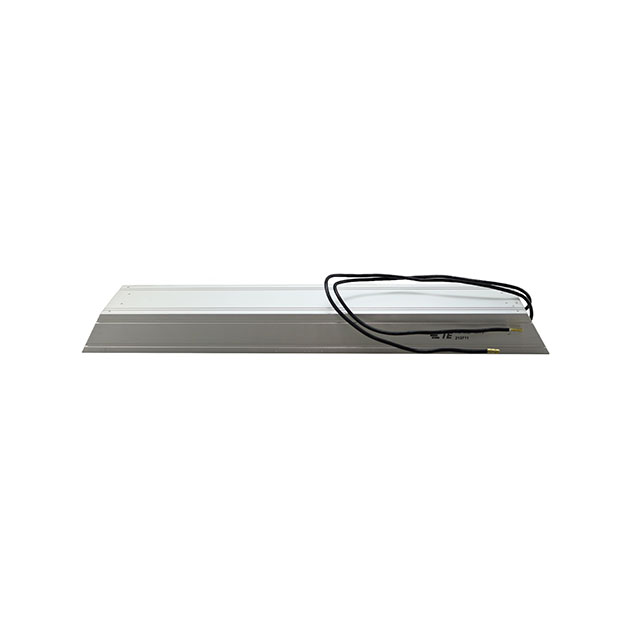

TE Connectivity AMP Connectors HCH335J10RJ	5 %	Flanges	375 °C	500 W	Rectangular Case	Wirewound		335 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	10 Ohms	Wire Leads	60 mm	13.189 in	2.362 in

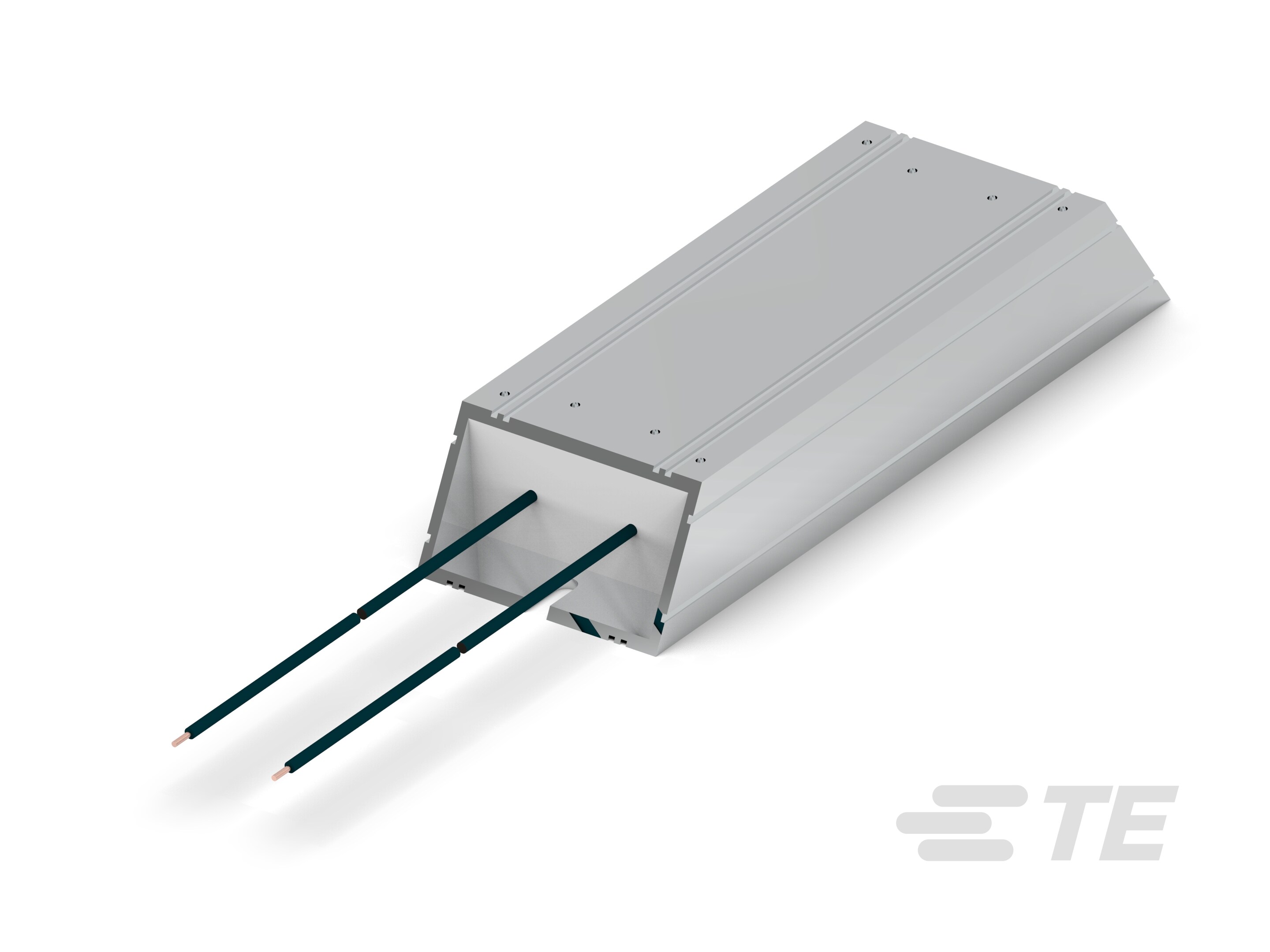

TE Connectivity AMP Connectors HCH165J10RJ	5 %	Flanges	320 °C	200 Watts	Rectangular Case	Wirewound		165 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	10 Ohms	Wire Leads	60 mm	6.496 "	2.362 in

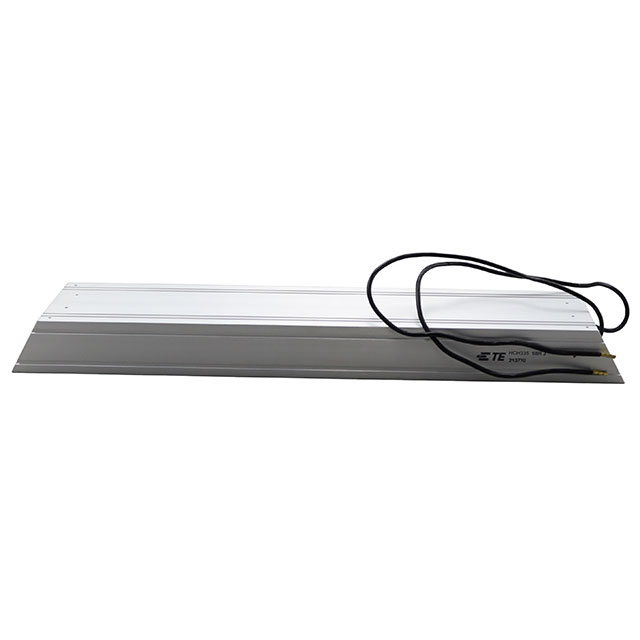

TE Connectivity AMP Connectors HCH335J68RJ	5 %	Flanges	375 °C	500 W	Rectangular Case	Wirewound		335 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	68 Ohms	Wire Leads	60 mm	13.189 in	2.362 in
TE Connectivity AMP Connectors HCH265J220RJ	5 %	Flanges	350 °C	400 W	Rectangular Case	Wirewound		265 mm	Aluminum	IP54 Pulse Withstanding	200 ppm/°C	1.26 in	32 mm	220 Ohms	Wire Leads	60 mm	10.433 in	2.362 in
