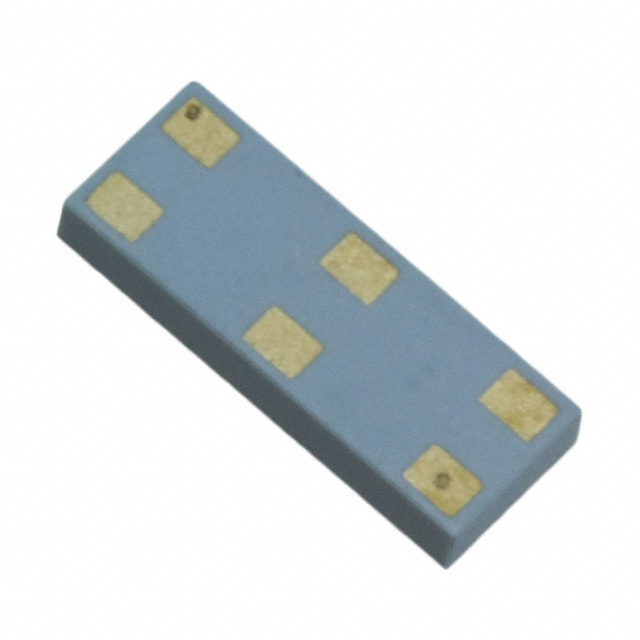

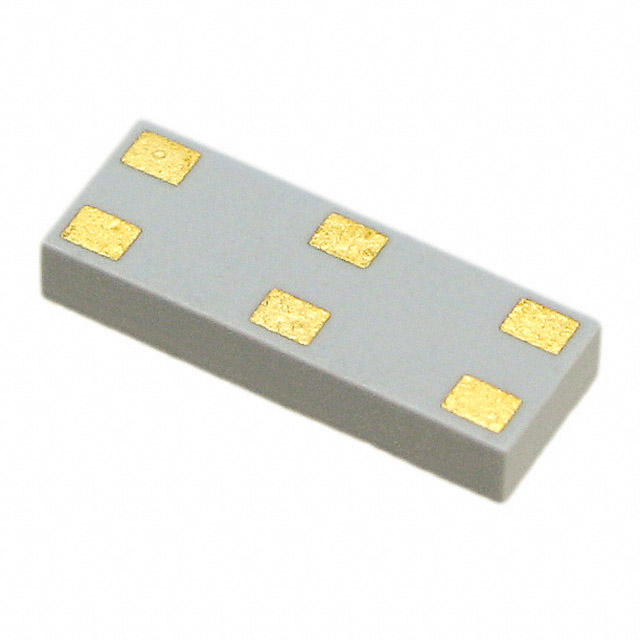

M830110 Series
Manufacturer: KYOCERA AVX
Beta
⌘K

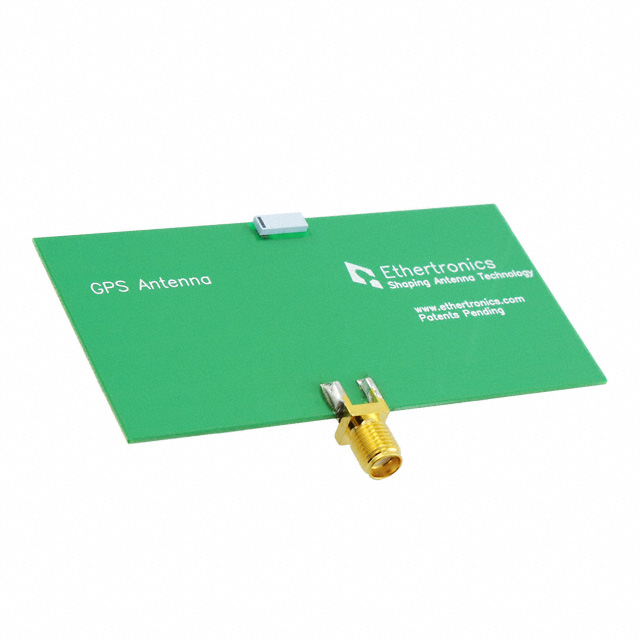

EVAL BOARD FOR M830110
| Part | For Use With/Related Products | Supplied Contents | Frequency | Contents | Utilized IC / Part | Type | Height (Max) [z] | Height (Max) [z] | Gain | Termination | RF Family/Standard | Mounting Type | Applications | Frequency Range [Max] | Frequency Range [Min] | Number of Bands | Frequency (Center/Band) | Power - Max [Max] | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | VSWR | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | M830110 | Board(s) | 1.575 GHz | Board(s) | M830110 | Antenna | |||||||||||||||||
 KYOCERA AVX | 0.051 in | 1.3 mm | 1.78 dBi | Solder | Navigation | Surface Mount | BeiDou GLONASS GPS | 1.602 GHz | 1.561 GHz | 1 | 1.561 GHz 1.575 GHz 1.602 GHz | 500 mW | 2 GHz | 1 GHz | UHF | 1.7 | Chip | ||||||
 KYOCERA AVX | 0.051 in | 1.3 mm | 1.78 dBi | Solder | Navigation | Surface Mount | BeiDou GLONASS GPS | 1.602 GHz | 1.561 GHz | 1 | 1.561 GHz 1.575 GHz 1.602 GHz | 500 mW | 2 GHz | 1 GHz | UHF | 1.7 | Chip |
