T2160N28 Series
Manufacturer: INFINEON
Beta
⌘K

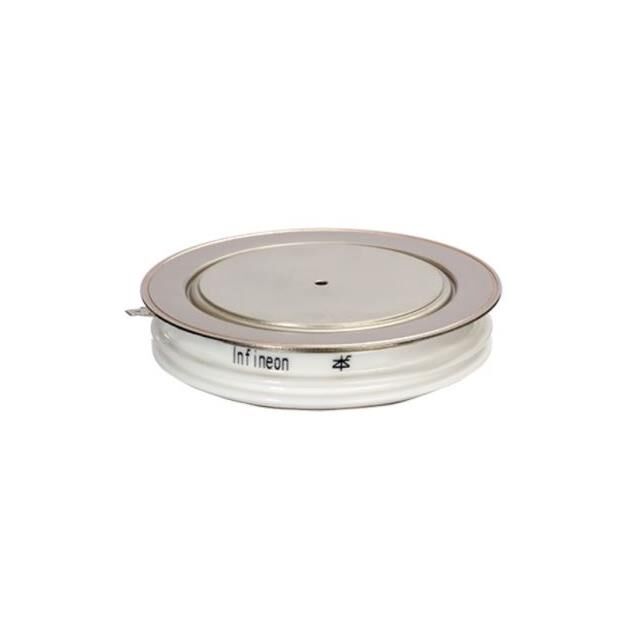

2800 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 111 MM DIA AND A HEIGHT OF 26 MM
| Part | Current - Non Rep. Surge 50, 60Hz (Itsm) | Mounting Type | Structure | Operating Temperature [Max] | Operating Temperature [Min] | Number of SCRs, Diodes | Voltage - Off State | Current - Gate Trigger (Igt) (Max) [Max] | Current - Hold (Ih) (Max) [Max] | Current - On State (It (AV)) (Max) [Max] | Current - On State (It (RMS)) (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 44000 A | Chassis Mount | Single | 125 °C | -40 C | 1 SCR | 2.8 kV | 300 mA | 300 mA | 2400 A | 4600 A | DO-200AE |
