INL-3 Series

Catalog

THROUGH HOLE / STANDARD 3MM T1

Part	Package / Case	Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Orientation	Mounting Type	Spectral Range [Max]	Spectral Range [Min]	Response Time	Diode Type	Voltage - DC Reverse (Vr) (Max) [Max]	Color - Enhanced	Lens Style	Millicandela Rating	Configuration	Height (Max) [z]	Wavelength - Peak	Lens Transparency	Color	Supplier Device Package	Lens Color	Size / Dimension [diameter]	Wavelength - Dominant	Lens Size	Lens Size	Current - Test
Inolux Corporation INL-3AIR30	Radial	Infrared (IR)	30 °	1.4 V	100 mA	80 °C	-40 C	6 mW/sr	850 nm	Top View	Through Hole
Inolux Corporation INL-3ANPD80	Radial		80 °			80 °C	-40 C		850 nm		Through Hole	1100 nm	400 nm	45 µs	PIN	170 V	Infrared (NIR) Red

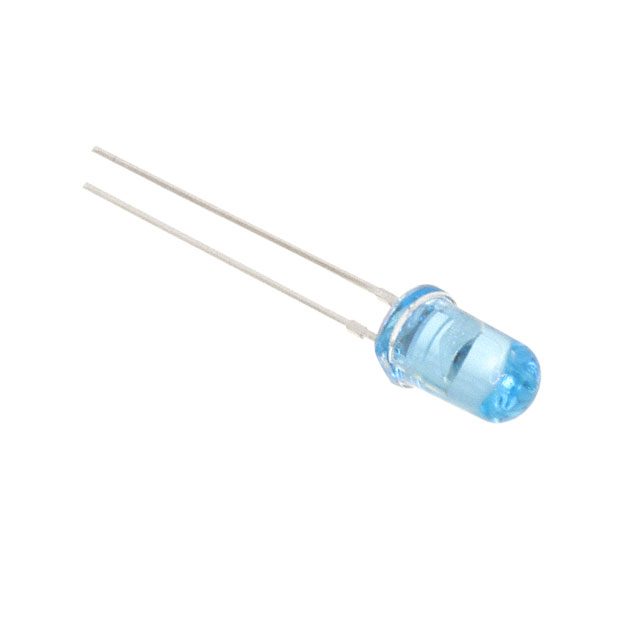

Inolux Corporation INL-3ABCMIR40	Radial	Infrared (IR)	40 °	1.3 V	100 mA	80 °C	-40 C	8 mW/sr	880 nm	Top View	Through Hole
Inolux Corporation INL-3AA30	Radial		30 °	2 V							Through Hole							Round with Domed Top	460 mcd	Standard	5.08 mm	605 nm	Clear	Amber	3 mm	Colorless	3.05 mm	610 nm	3 mm	T-1	20 mA
Inolux Corporation INL-3AHIR15	Radial	Infrared (IR)	15 °		100 mA	80 °C	-40 C	6 mW/sr	940 nm	Top View	Through Hole
