PE0805F Series

Manufacturer: YAGEO

Catalog

Catalog

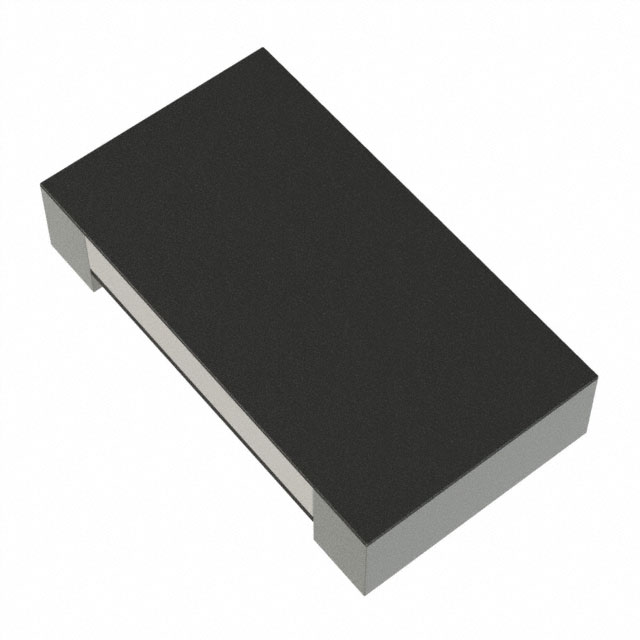

RES 0.04 OHM 1% 1/3W 0805

...

Part	Power (Watts)	Power (Watts)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Composition	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Supplier Device Package	Ratings	Temperature Coefficient	Number of Terminations [custom]	Resistance	Size / Dimension [y]
YAGEO PE0805FRF7T0R04L	0.3333333333333333 W	0.333 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	100 ppm/°C	2
YAGEO PE0805FRF070R01L	0.125 W	0.125 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	100 ppm/°C	2	10 mOhms
YAGEO PE0805FRF7T0R005L	0.3333333333333333 W	0.333 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805		100 ppm/°C	2	5 mOhms
YAGEO PE0805FRF470R02L	0.5 W	0.5 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	100 ppm/°C	2	0.02 Ohms
YAGEO PE0805FRF070R02L	0.125 W	0.125 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	100 ppm/°C	2	0.02 Ohms
YAGEO PE0805FRM470R042L	0.5 W	0.5 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	75 ppm/°C	2	42 mOhms
YAGEO PE0805FRM070R02Z	0.125 W	0.125 W	0805	0.85 mm	0.033 in	1 %		0.079 in	2 mm	1.25 mm	170 °C	-55 C	Current Sense	0805		75 ppm/°C	2	0.02 Ohms	0.049 "
YAGEO PE0805FRM470R028L	0.5 W	0.5 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	75 ppm/°C	2	28 mOhms
YAGEO PE0805FRF470R013L	0.5 W	0.5 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	100 ppm/°C	2	13 mOhms
YAGEO PE0805FRM470R006L	0.5 W	0.5 W	0805	0.6 mm	0.024 in	1 %	Metal Film	0.08 "	2.03 mm	1.27 mm	170 °C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	75 ppm/°C	2	6 mOhms
