SFW26S Series

Catalog

CONN FFC FPC VERT 26POS 1MM SMD

Part	Mating Cycles	Housing Color	Locking Feature	Contact Material	Housing Material	Number of Positions	Actuator Material	Material Flammability Rating	FFC, FCB Thickness	Contact Finish	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Mounting Type	Flat Flex Type	Pitch	Pitch	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Cable End Type	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]

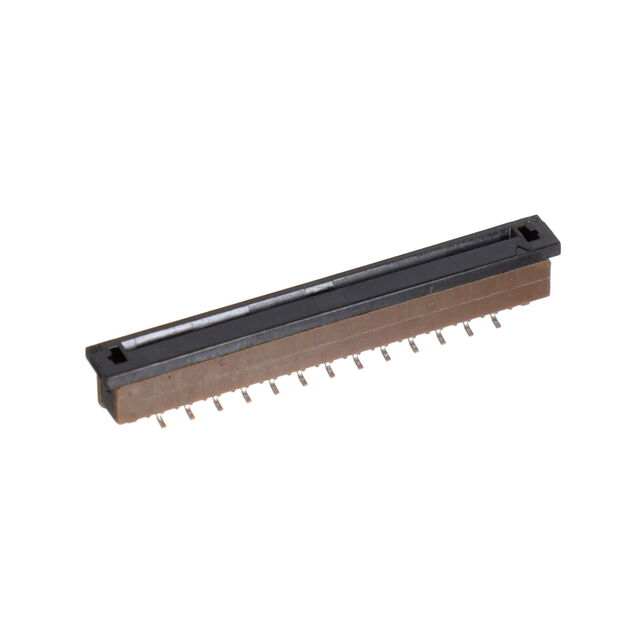

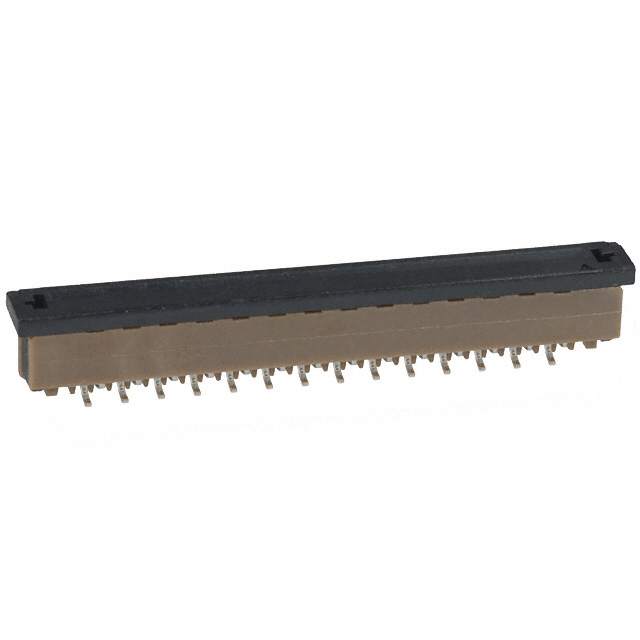

Amphenol ICC (FCI) SFW26S-2STE1LF	20	Brown	Slide Lock	Phosphor Bronze	Glass Filled Thermoplastic	26	Thermoplastic Glass Filled	UL94 V-0	0.33 mm	Tin	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	Surface Mount	FFC FPC	1 mm	0.039 in	100 V	-55 C	105 ░C	Solder
Amphenol ICC (FCI) SFW26S-2STME1LF	20	Brown		Phosphor Bronze	Glass Filled Thermoplastic	26	Thermoplastic Glass Filled	UL94 V-0	0.3 mm	Tin	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	Surface Mount	FFC FPC	1 mm	0.039 in	100 V	-55 C	105 ░C	Kinked Pin	Straight or Tapered
Amphenol ICC (FCI) SFW26S-2STE1	20	Brown	Slide Lock	Phosphor Bronze	Glass Filled Thermoplastic	26	Thermoplastic Glass Filled	UL94 V-0		Tin Alloy	0.209 in	5.3 mm	Contacts Vertical - 1 Sided	Surface Mount	FFC FPC	1 mm	0.039 in	100 V	-55 C	85 °C	Solder	Straight Tapered	Black	0.3 mm	0.33 mm
