SUPERSEAL 1.0mm Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SUPER SEAL 34POS CAP ASSY V AU

Part	Applications	Connector Type	Contact Finish - Post	Shrouding	Contact Shape	Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Material	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Features	Voltage Rating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Number of Positions [custom]	Style	Insulation Color	Contact Termination	Number of Rows [custom]	Number of Positions	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Finish	Pin or Socket	Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Pitch	Pitch

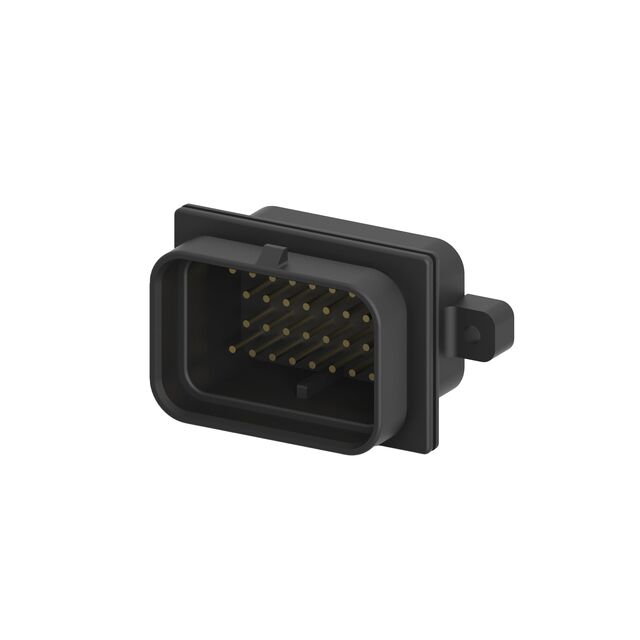

TE Connectivity AMP Connectors 2-6447232-3
TE Connectivity AMP Connectors 2-6447232-3	Automotive	Receptacle	Tin	Shrouded - 4 Wall	Circular	Solder	Male Pin	125 °C	-40 C	Locking Ramp	Polyester	All	Through Hole	Varies by Wire Gauge	Mounting Flange Sealed	250 V	1.079 in	27.4 mm	0.157 in	4 mm	3 mm	0.118 in	Gold	Brass	34	Board to Cable/Wire
TE Connectivity AMP Connectors 2-6437285-5		Receptacle	Tin	Shrouded - 4 Wall	Circular	Solder	Male Pin	125 °C	-40 C	Locking Ramp	Polyester	All	Right Angle Through Hole	Varies by Wire Gauge	Mounting Flange Sealed	250 V	1.079 in	27.4 mm	0.157 in	4 mm	3 mm	0.118 in	Gold	Brass	34	Board to Cable/Wire	Black
TE Connectivity AMP Connectors 1473712-1		Plug					Female Socket	125 °C	-40 C	Latch Lock	Polyphenylene Sulfide (PPS)		Free Hanging (In-Line)															Crimp	2	26
TE Connectivity AMP Connectors 2303344-2		Header	Gold	Unshrouded	Circular	Solder	Male Pin	105 ░C	-40 C	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	All	Through Hole			300 VAC					3 mm	0.118 in	Gold	Copper Alloy		Board to Cable/Wire	Black			26	3 A	0.897 in	22.8 mm	UL94 HB
TE Connectivity AMP Connectors 9-6437287-8		Header	Tin	Shrouded - 4 Wall	Circular	Solder	Male Pin	125 °C	-40 C	Locking Ramp	Polyester	All	Right Angle Through Hole		Mounting Flange	250 V	1.079 in	27.4 mm	0.157 in	4 mm	3 mm	0.118 in	Gold	Brass		Board to Cable/Wire				26
TE Connectivity AMP Connectors 1-1437284-0																												Crimp							Tin	Socket	Stamped	14 AWG	16 AWG
TE Connectivity AMP Connectors 6473427-1	Automotive	Receptacle	Tin	Shrouded - 4 Wall	Circular	Solder	Male Pin	125 °C	-40 C	Locking Ramp	Polyester	All	Right Angle Through Hole	Varies by Wire Gauge	Mounting Flange Sealed	250 V	1.079 in	27.4 mm	0.157 in	4 mm	3 mm	0.118 in	Gold	Brass		Board to Cable/Wire				60
TE Connectivity AMP Connectors 2389578-2		Plug					Female Socket	125 °C	-40 C	Latch Lock	Polybutylene Terephthalate (PBT) Glass Filled		Free Hanging (In-Line)		Sealed										34			Crimp												Black	0.118 in	3 mm
TE Connectivity AMP Connectors 2-1437285-2		Plug					Female Socket	125 °C	-40 C	Latch Holder	Polyester Thermoplastic		Free Hanging (In-Line)															Crimp		26										Black	0.118 in	3 mm
