PC112 Series
Manufacturer: Panduit Corp
Beta
⌘K

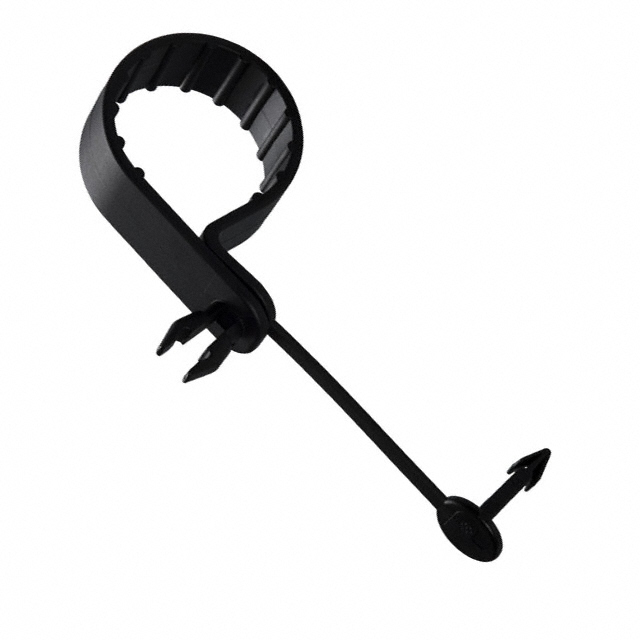

PAN-CLAMP HEAVY DUTY FIXED DIAMETER CABLE CLAMP ROHS COMPLIANT: YES
| Part | Bundle Center to Mounting Center [x] | Bundle Center to Mounting Center [x] | Opening Size [z] | Opening Size | Width | Width | Panel Hole Size [Max] | Panel Hole Size [Min] | Panel Hole Size [Min] | Panel Hole Size [Max] | Features | Mounting Type | Height [z] | Height [z] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Material | Material Flammability Rating | Color | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 1.016 in | 25.8 mm | 1.122 in | 28.5 mm | 0.618 in | 15.7 mm | 0.288 in | 0.275 in | 6.99 mm | 7.32 mm | Chemical Resistant Impact Resistant Weather Resistant | Push In | 1.331 " | 33.8 mm | 0.055 in | 0.14 in | 3.56 mm | 1.4 mm | Polyamide (PA66) Nylon 6/6 | UL94 HB | Black | Clamp P-Type |
